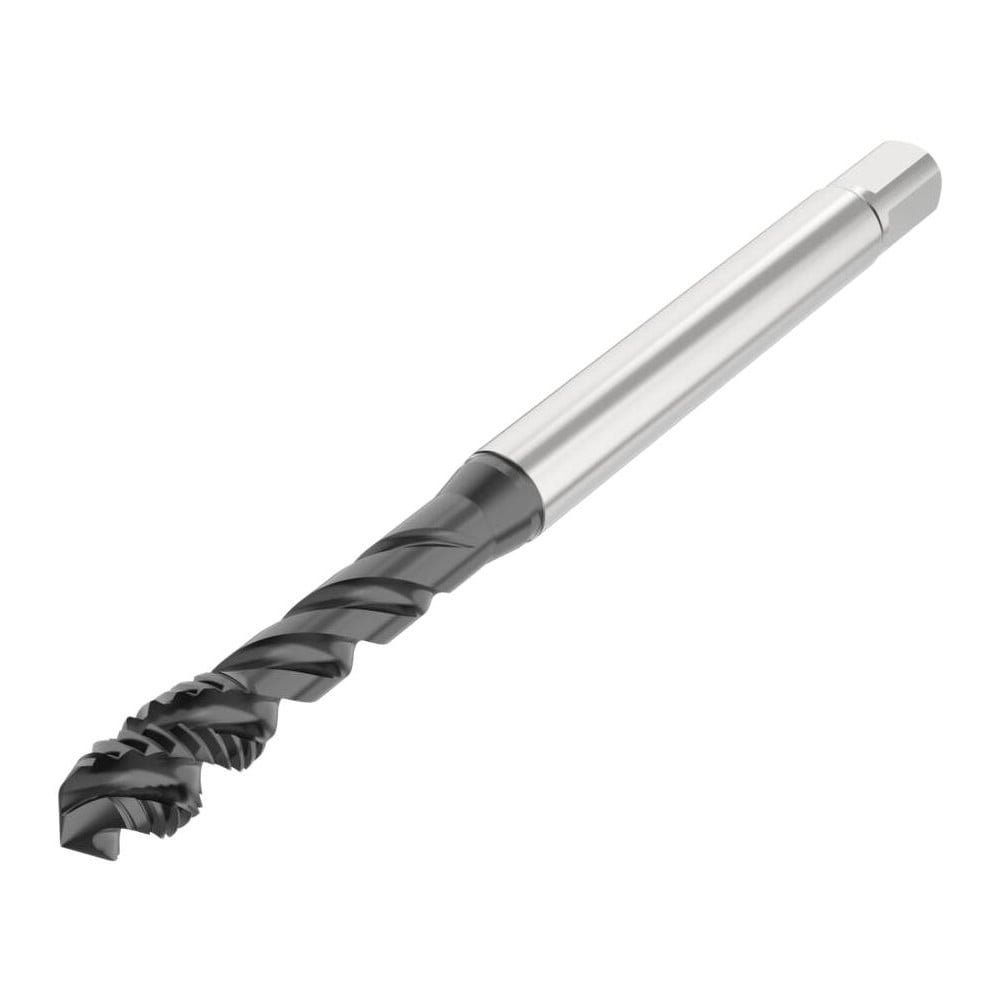

Brand: Seco / Part #: 10139073
Item #: 98786379
Brand: Seco
Model #: 10139073
Product Specifications
| Thread Size (Inch) | #6-40 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 2BX |
| Number Of Flutes | 3 |
| Material | HSS-E-PM |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | HL |
| Thread Depth (mm) | 6.00 |
| Coolant Through | No |
| Thread Length (mm) | 6.00 |
| Overall Length (mm) | 57.4000 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Pitch (mm) | 0.64 |
| Thread Standard | UNF |
| Helix Angle | 45.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 4.0000 |
| Neck Length (mm) | 14.00 |
| Tapping Depth (mm) | 20.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Shank Length (mm) | 37.400 |
