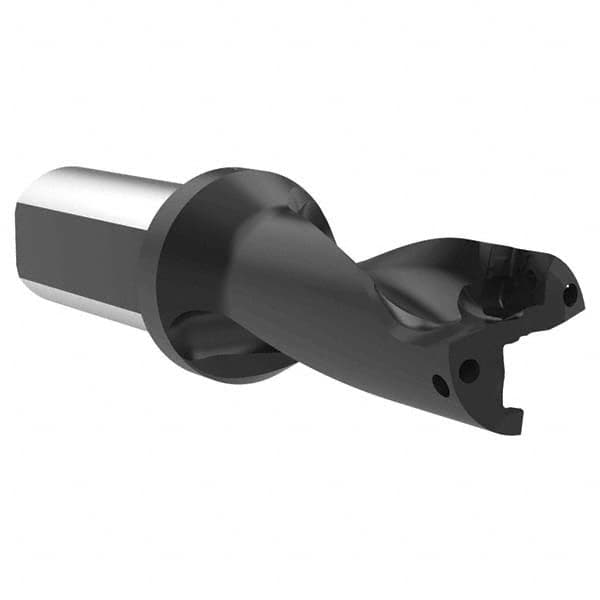

Allied Machine and Engineering - 44.45mm Max Drill Depth, 2xD, 22.22mm Diam, Indexable Insert Drill
Item #: 12572186
Brand: Allied Machine and Engineering
Model #: D2070875I-25FM
| Product Specifications | |
|---|---|
| Drill Style | D207 |
| Drill Diameter (mm) | 22.22 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (mm) | 44.45 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Diameter (mm) | 22.22 |
| Overall Length/Projection (mm) | 118.90 |
| Insert Compatibility | 4T-070305 |
| Body Length (mm) | 64.90 |
| Shank Length (mm) | 54.00 |
| Collar Diameter (mm) | 33.00 |
| Series | 4Tex |
