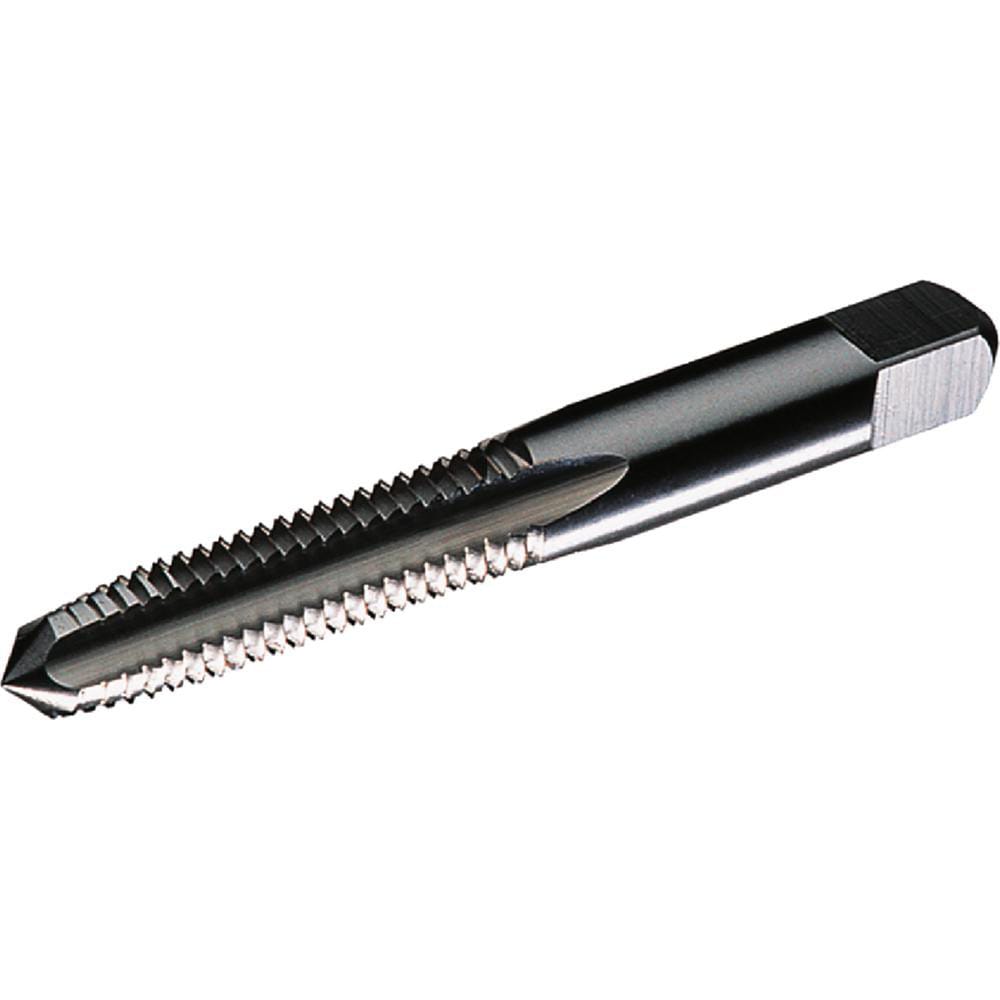

Brand: Widia / Part #: 2749102
Item #: 72369515
Brand: Widia
Model #: 2749102
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M20x2.5 |
| Thread Limit | D7 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 10 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 113.5400 |
| Thread Pitch (mm) | 2.50 |
| Thread Length (mm) | 50.80 |
| Thread Depth (mm) | 50.80 |
| Application | Metal |
| Shank Diameter (mm) | 16.5600 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 2.4701 |
