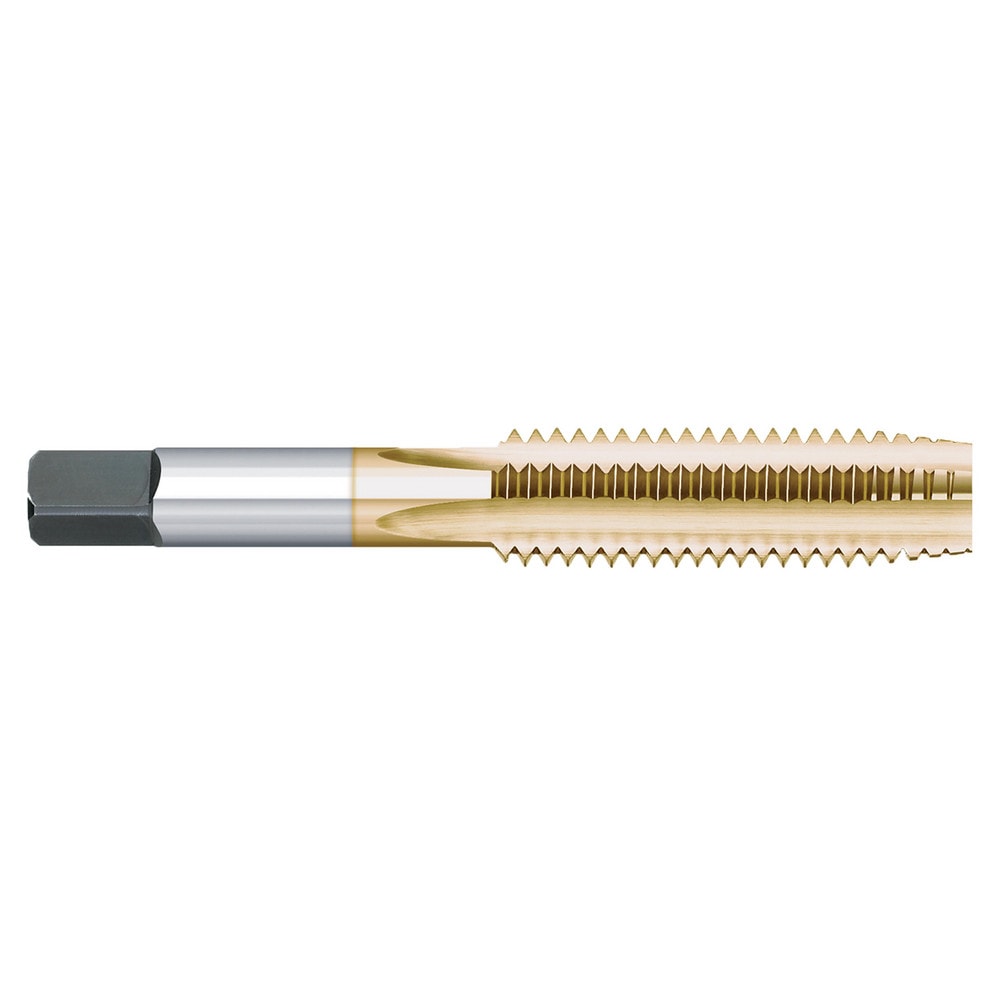

Brand: Titan USA / Part #: TT82967TIN
Item #: 87750774
Brand: Titan USA
Model #: TT82967TIN
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Thread Limit | H3 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Threads per Inch | 18 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Overall Length (Inch) | 3-13/16 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Overall Length (Decimal Inch) | 3.8125 |
| Thread Length (Decimal Inch) | 1.8125 |
| Thread Length (Inch) | 1-13/16 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
| Square Size (Decimal Inch) | 0.3600 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - Left Hand |
