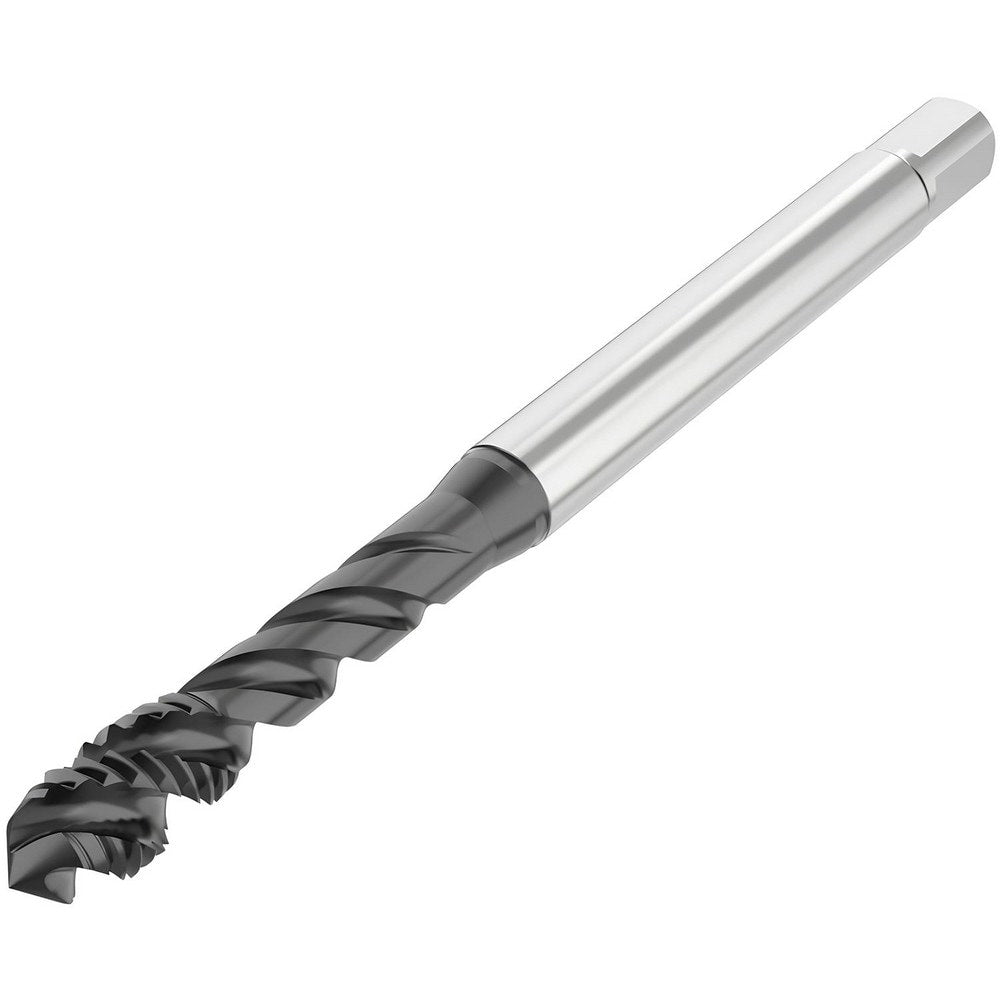

Brand: Seco / Part #: 10138963
Item #: 98683535
Brand: Seco
Model #: 10138963
Product Specifications
| Thread Size (mm) | M2.6 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 6H |
| Number Of Flutes | 2 |
| Material | HSS-PM |
| Threads per Inch | 56 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | HL |
| Thread Depth (mm) | 5.00 |
| Coolant Through | No |
| Thread Length (mm) | 5.00 |
| Overall Length (mm) | 51.7000 |
| Thread Pitch (Decimal Inch) | 0.0177 |
| Thread Pitch (mm) | 0.45 |
| Thread Standard | Metric |
| Helix Angle | 45.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 2.8000 |
| Neck Length (mm) | 9.00 |
| Tapping Depth (mm) | 14.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Series | T34 |
| Shank Length (mm) | 37.700 |
