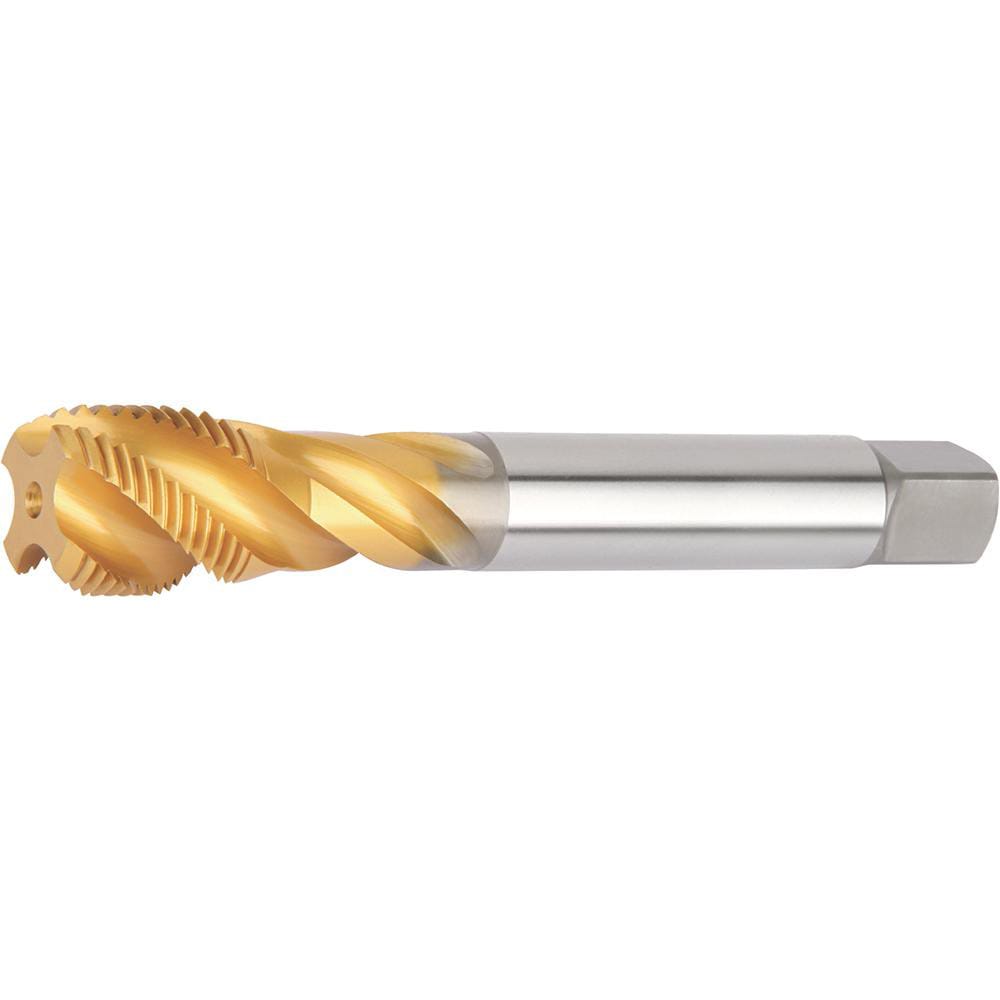

Brand: Widia / Part #: 6058816
Item #: 83112938
Brand: Widia
Model #: 6058816
Product Specifications
| Thread Size (Inch) | 1/4-19 |
| Overall Length (Decimal Inch) | 3.9400 |
| Chamfer | Semi-Bottoming |
| Thread Standard | BSPP |
| Thread Pitch (Decimal Inch) | 0.0526 |
| Flute Direction | Right Hand |
| Helix Angle | 42 |
| Material | Solid Carbide |
| Thread Length (Decimal Inch) | 0.5900 |
| Thread Depth (Decimal Inch) | 1.7300 |
| Shank Diameter (Decimal Inch) | 0.4330 |
| Square Length (Decimal Inch) | 0.4700 |
| Square Size (Decimal Inch) | 0.4000 |
| Projection (Decimal Inch) | 1.7300 |
| Application | Tapping |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
| Threads per Inch | 19.0 |
| Coating/Finish | Black Oxide |
| Number Of Flutes | 3 |
