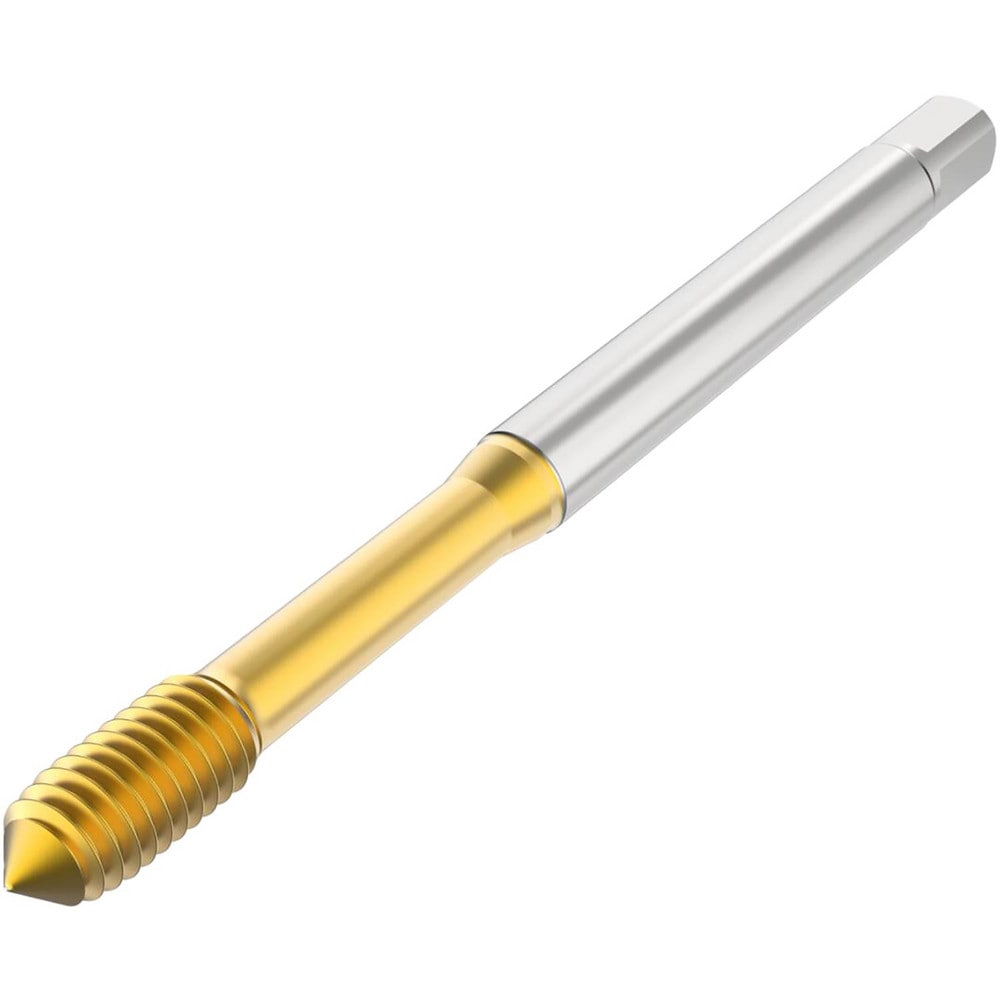

Brand: Seco / Part #: 10139191
Item #: 99606477
Brand: Seco
Model #: 10139191
Product Specifications
| Thread Size (mm) | M3 |
| Overall Length (mm) | 57.2000 |
| Chamfer | Modified Bottoming |
| Coating/Finish | TN |
| Thread Pitch (mm) | 0.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | HSS-E-PM |
| Thread Length (mm) | 10.00 |
| Thread Depth (mm) | 10.00 |
| Thread Depth | 10.0000 |
| Shank Diameter (mm) | 3.5000 |
| Neck Length | 8.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Steel |
| Application | Industrial |
| Series | T33 |
| Tap Type | Thread Forming |
| Tapping Depth (mm) | 18.00 |
| Shank Length (mm) | 39.200 |
| Threads per Inch | 51 |
| Class Of Fit | 6HX |
| Coolant Through | No |
