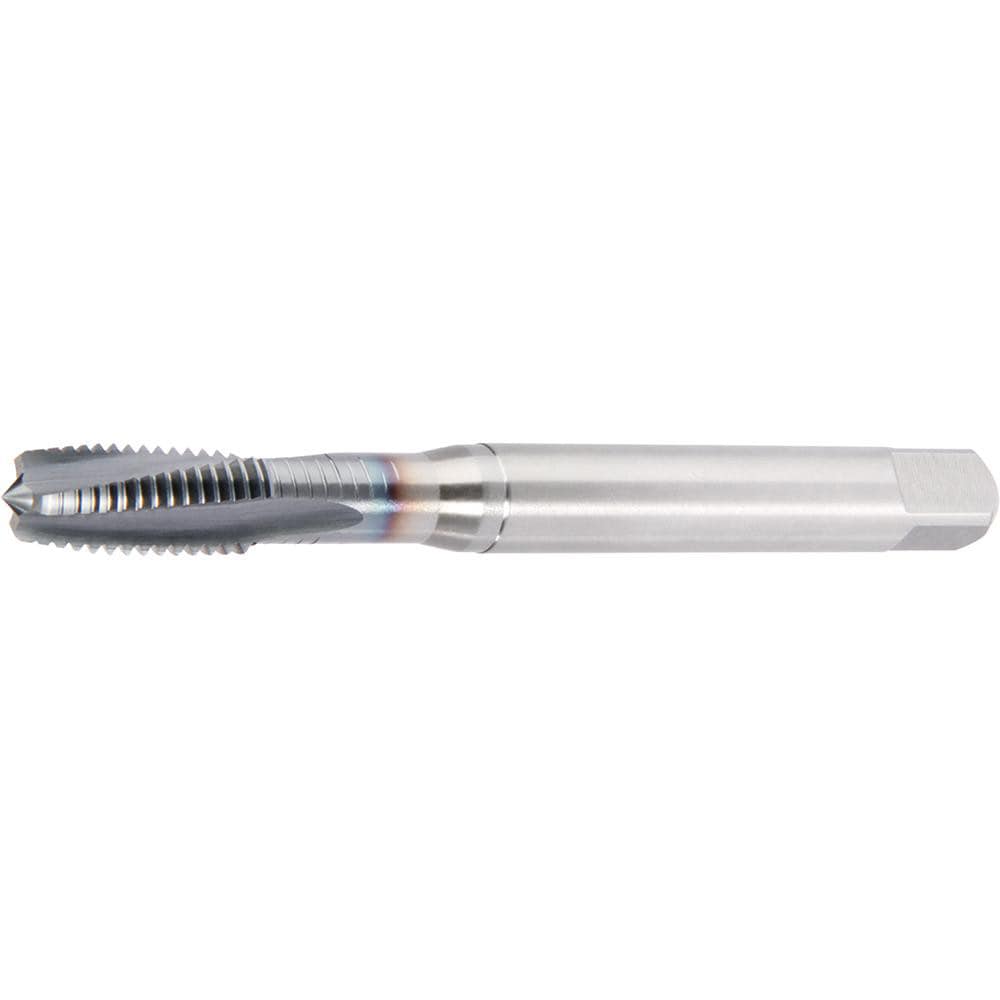

Brand: Widia / Part #: 4160103
Item #: 97184683
Brand: Widia
Model #: 4160103
Product Specifications
| Thread Size (mm) | M6x1 |
| Chamfer | Plug |
| Thread Limit | D7 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 30.00 |
| Coolant Through | No |
| Thread Length (mm) | 17.00 |
| Overall Length (mm) | 80.0000 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Material Grade | WS32MG |
| Shank Diameter (mm) | 6.0000 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.90 |
| Material Application | High-Temperature Alloy |
| Series | GT10 |
