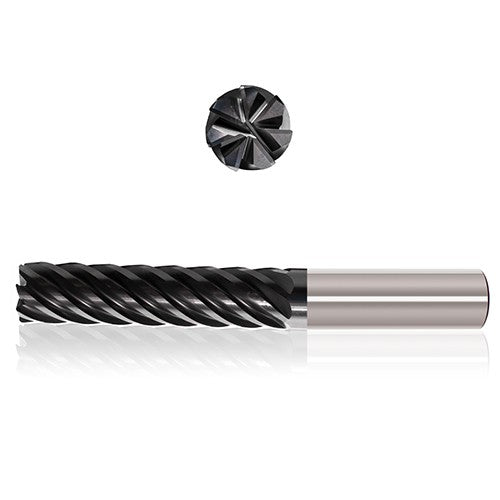

1/4X1/4X3/4X2 1/2_7FL RH
Item #: CW8056295
Brand: Precision Cutting Tools
Model #: 9581590
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Grade | A5007 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ |
| Maximum Feed per Tooth (fz(max)) | 0.0012″ |
| Coating | Sistral |
| Minimum Feed per Tooth (fz(min)) | 0.0003″ |
| Flute Count (NOF) | 7 |
| Length Group | Standard |
| Flute Helix Angle (FHA) | Variable |
| Coolant Supply Property (CSP) | External |
| Shank Type | Straight |
| Shank Standard | h6 |
| End Shape | Bullnose |
| Body Material | Carbide |
| Usable Length (LU) | 3/4″ |
| Decimal Equivalent | 0.25″ |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Measurement Type | Inch |
| Application | HEM | Semi Finishing | Finishing |
| Series/List # | 740 |
| Corner Radius (RE) | 0.015″ |
| Shank Size (SS) | 1/4″ |
