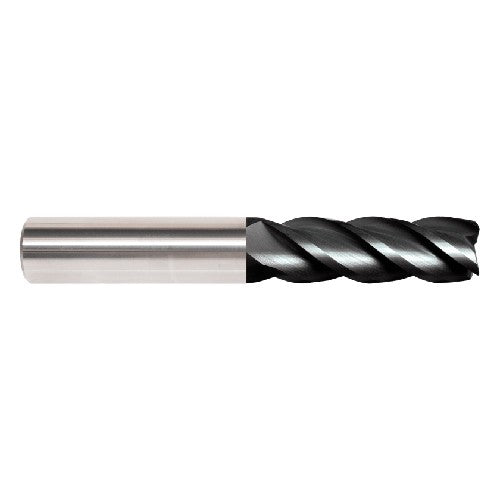

Precision Cutting Tools 451 SERIES 4 FLUTE FOR CAST IRON, STEELS, AND SOFT STAINLESS
Item #: CW8057728
Brand: Precision Cutting Tools
Model #: 9500235
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 3″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | TiAICN |
| Length Group | 2 Extra Long |
| Flute Count (NOF) | 4 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Usable Length (LU) | 3″ |
| Series/List # | 451 |
| Application | | Finish | Roughing | Semi Finish | Slotting | |
| Shank Size (SS) | 5/8″ |
| Corner Radius (RE) | 1/8″ |
