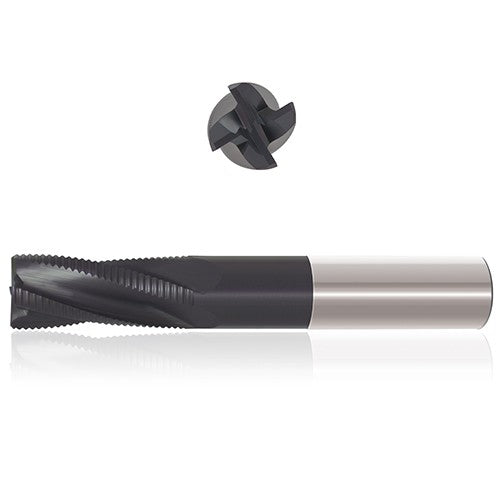

DC 1/2″ x DCONMS 1/2″ x APMX 7/8″ x OAL 6″
Item #: CW8058455
Brand: Precision Cutting Tools
Model #: 9585486
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Grade | A5009 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Length Group | Long - Necked |
| Overall Length (OAL) | 6″ |
| End Shape | Ballnose |
| Coating | Varianta Supral |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 20 Degrees |
| Body Material | Carbide |
| Shank Type | Cylindrical |
| Style | Necked |
| Usable Length (LU) | 4-1/8″ |
| Decimal Equivalent | 0.5″ |
| Applicable Material | Super-Alloys / Titanium |
| Measurement Type | Inch |
| Application | | Roughing | Semi Finish | |
| Series/List # | 423 |
| Corner Radius (RE) | 1/4″ |
| Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Neck Diameter (DN) | 0.48 |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Number of Teeth | 4 |
| Shank Size (SS) | 1/2″ |
