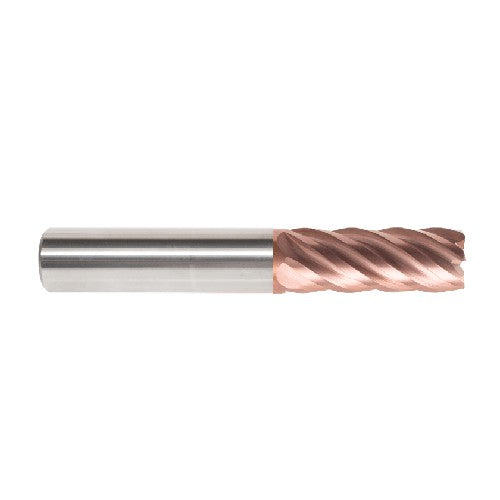

Precision Cutting Tools 677 SERIES 6 FLUTE FOR TOOL STEELS, DUPLEX, PH STAINLESS, & HRSAs
Item #: CW8059268
Brand: Precision Cutting Tools
Model #: 9584549
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Grade | H5003 Vulcan |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ |
| Maximum Feed per Tooth (fz(max)) | 0.0038 ″/tooth |
| Cutting Edge Material | Carbide |
| Minimum Feed per Tooth (fz(min)) | 0.0015 ″/tooth |
| Coating | VARIANTIC |
| Length Group | Stub |
| Flute Count (NOF) | 6 |
| Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.625″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Usable Length (LU) | 3/4″ |
| Series/List # | 677 |
| Application | | Finish | HEM | Semi Finish | |
| Shank Size (SS) | 5/8″ |
| Corner Radius (RE) | 1/8″ |
