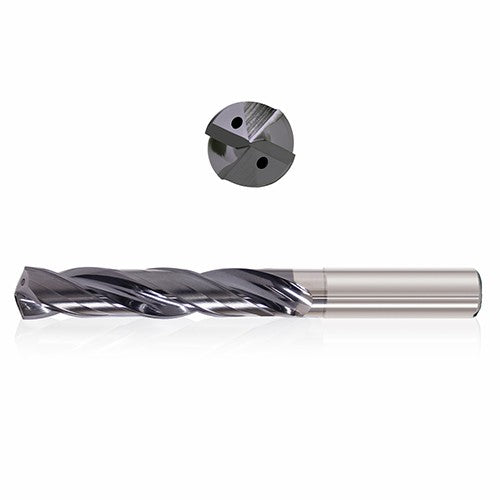

0.4016 mm Dia. × 12 mm Shank × 325 mm Flute Length × 375 mm OAL, 25xD, 135°, Varianta Supral, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill
Item #: CW8110897
Brand: Precision Cutting Tools
Model #: 9572912
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.4016 mm |
| Shape | Round |
| Decimal Equivalent | 0.0158″ |
| Cutting Edge Material | Carbide |
| Length Group | 25xD |
| Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral |
| Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium |
| Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
| Series/List # | SXC |
| Point Angle (SIG) | 135 Degrees |
| Usable Length (LU) | 12.1929 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Length Chip Flute (LCF) | 325 mm |
| Number of Teeth | 2 |
| Overall Length (OAL) | 375 mm |
| Shank Length (LS) | 1.9685 mm |
| Flute Count (NOF) | 2 |
| Shank Type | Cylindrical |
| Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 |
| Cutting Direction (HAND) | Right Hand |
