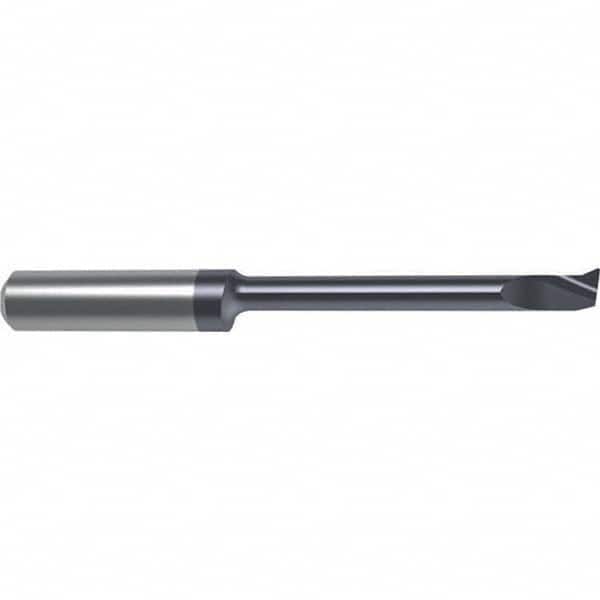

Guhring - Boring Bars Minimum Bore Diameter (mm): 1.50 Maximum Bore Depth (mm): 7.00
Item #: 20016580
Brand: Guhring
Model #: 9250530040050
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Product Specifications
Boring Bars; Minimum Bore Diameter (mm): 1.50 ; Maximum Bore Depth (mm): 7.00 ; Material: Solid Carbide ; Material Grade: Fine Grain ; Boring Bar Type: Boring; Profiling ; Shank Diameter (mm): 4.0000
| Minimum Bore Diameter (mm) | 1.50 |
| Maximum Bore Depth (mm) | 7.00 |
| Material | Solid Carbide |
| Material Grade | Fine Grain |
| Boring Bar Type | Boring; Profiling |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (mm) | 25.00 |
| Cutting Direction | Left Hand |
| Finish/Coating | nano-A |
| Corner Radius (mm) | 0.05 |
