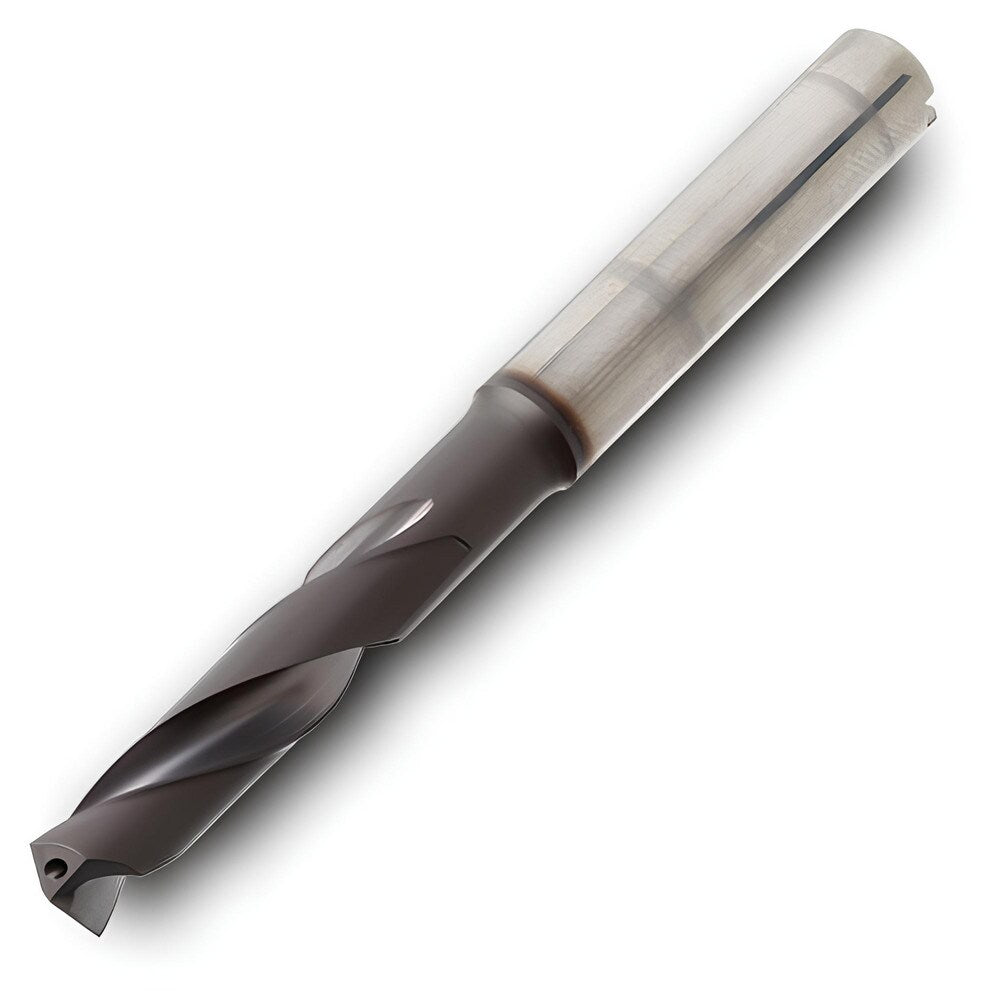

Brand: Ingersoll Cutting Tools / Part #: 6154490
Item #: 94114717
Brand: Ingersoll Cutting Tools
Model #: 6154490
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Drill Bit Size (mm) | 5.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Point Type | Self Centering |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 66.0000 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.0000 |
| Series | DH |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Drill Point Length (mm) | 0.80 |
| Drill Point Length (Decimal Inch) | 0.0315 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Flute Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 28.00 |
| Drill Bit Grade | General Purpose |
| Material Grade | IN2005 |
