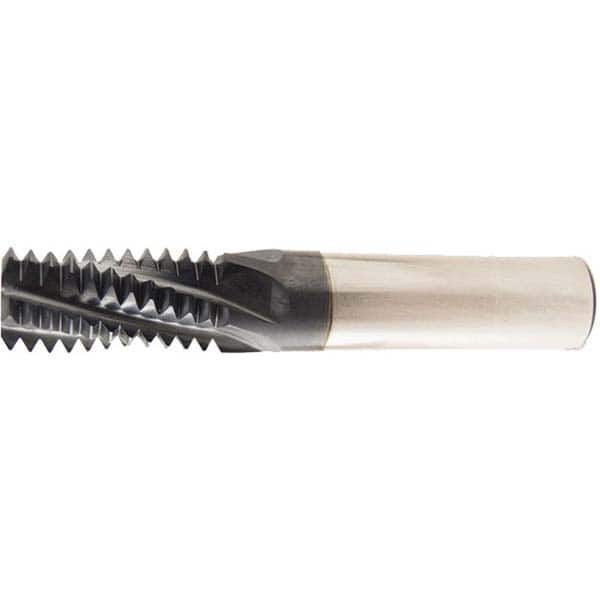

Cleveland - Helical Flute Thread Mills Threads Per Inch: 28 Material: Carbide
Item #: 18102731
Brand: Cleveland
Model #: C95060
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Threads Per Inch: 28 ; Material: Carbide ; Thread Type: Internal/External ; Shank Diameter (mm): 6.3500 ; Number of Flutes: 3 ; Cutting Diameter (Decimal Inch): 0.2400
| Threads Per Inch | 28 |
| Material | Carbide |
| Thread Type | Internal/External |
| Shank Diameter (mm) | 6.3500 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.2400 |
| Cutting Diameter (mm) | 6.10 |
| Length of Cut (Inch) | 0.572 |
| Finish/Coating | TiAlN |
| Through Coolant | Through Coolant |
| Minimum Nominal Diameter | 1/16 |
| Overall Length (Inch) | 2-1/2 |
| Shank Length (Inch) | 1.928 |
| Flute Direction | Left/Right Hand |
| Material Grade | Sub Micrograin |
| PSC Code | 5133 |
