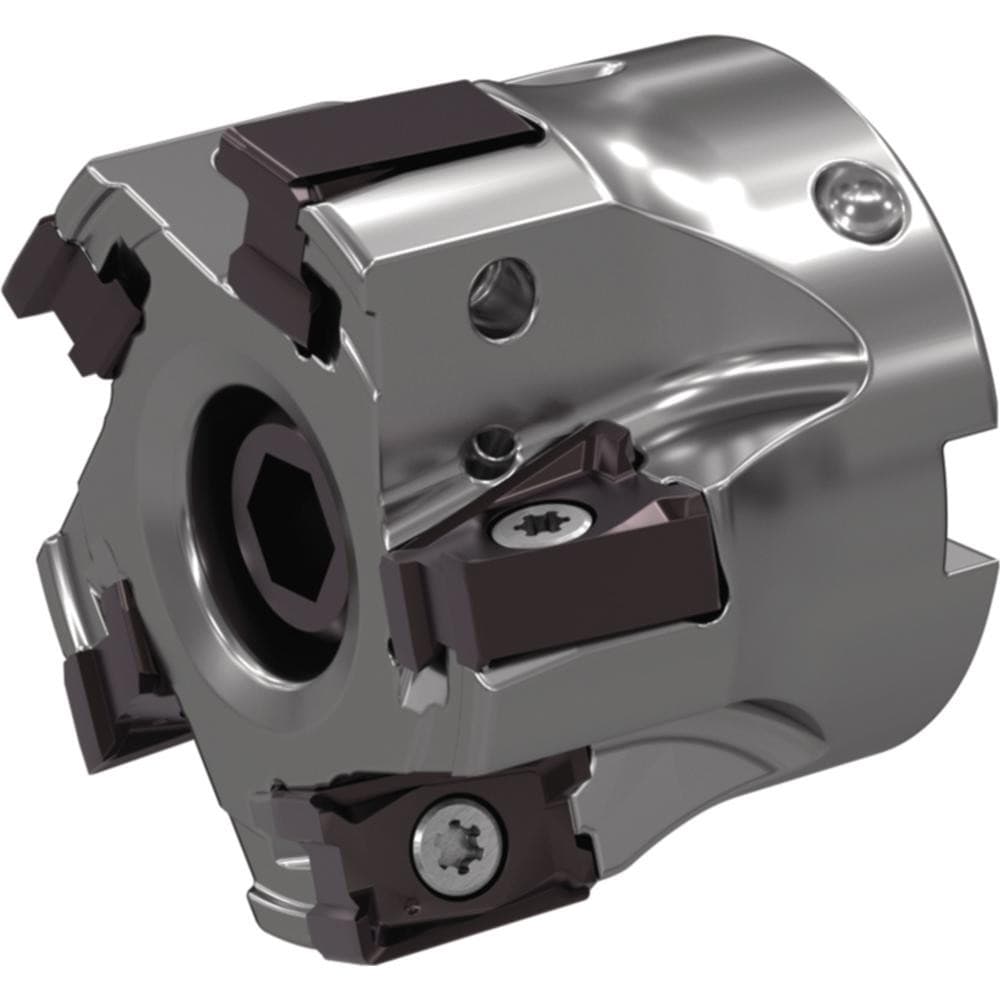

Brand: Widia / Part #: 2003553
Item #: 09909052
Brand: Widia
Model #: 2003553
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XNGU15T6.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -13.700 |
| Series | VSM490 |
| Maximum Body Diameter (Decimal Inch) | 2.4010 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Maximum RPM | 14100.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM490D250Z05S075XN15 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Complete Insert Compatibility | XNGU15T608SRMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM490D250Z05S075XN15 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
