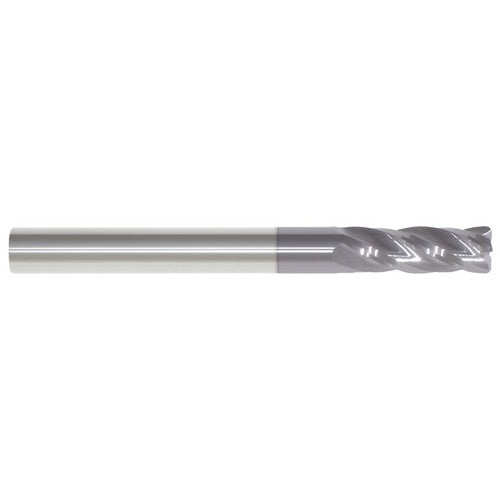

1/2″ 4FLT CARBIDE ENDMILL
Item #: DC26206603006
Brand: MTC
Model #: 62259
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | Profiling | Ramping | Profile Cutting | Radiusing | Radius Slotting |
| Depth of Cut Maximum (APMX) | 1″ |
| Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 3″ |
| Grade | C-2 Sub-Micron |
| Cutting Edge Material | Solid Tungsten Carbide |
| Length Group | Regular |
| Coating | AlTiN |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
