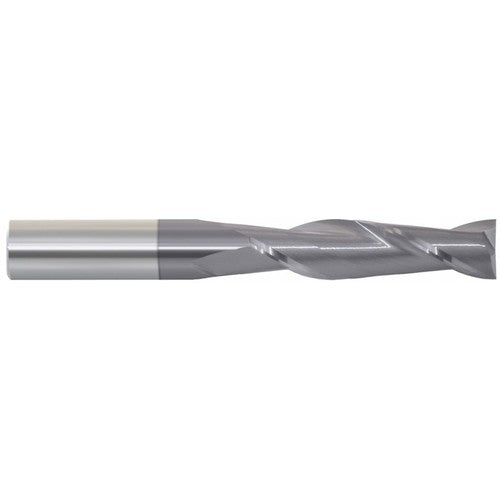

3/4X3/4X3X6 2F TIALN CARBIDE
Item #: DC26216001083
Brand: MTC
Model #: 62763
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | Stainless Steel | Cast Iron |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | Slotting | Profiling | Plunging |
| Depth of Cut Maximum (APMX) | 3″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 6″ |
| Length Group | Extra Long |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.75″ |
| Coating | AlTiN |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Single / Double End | Single End |
| Flute Helix Angle (FHA) | 30 Degrees |
| Center Cutting | Yes |
| End Shape | Square |
