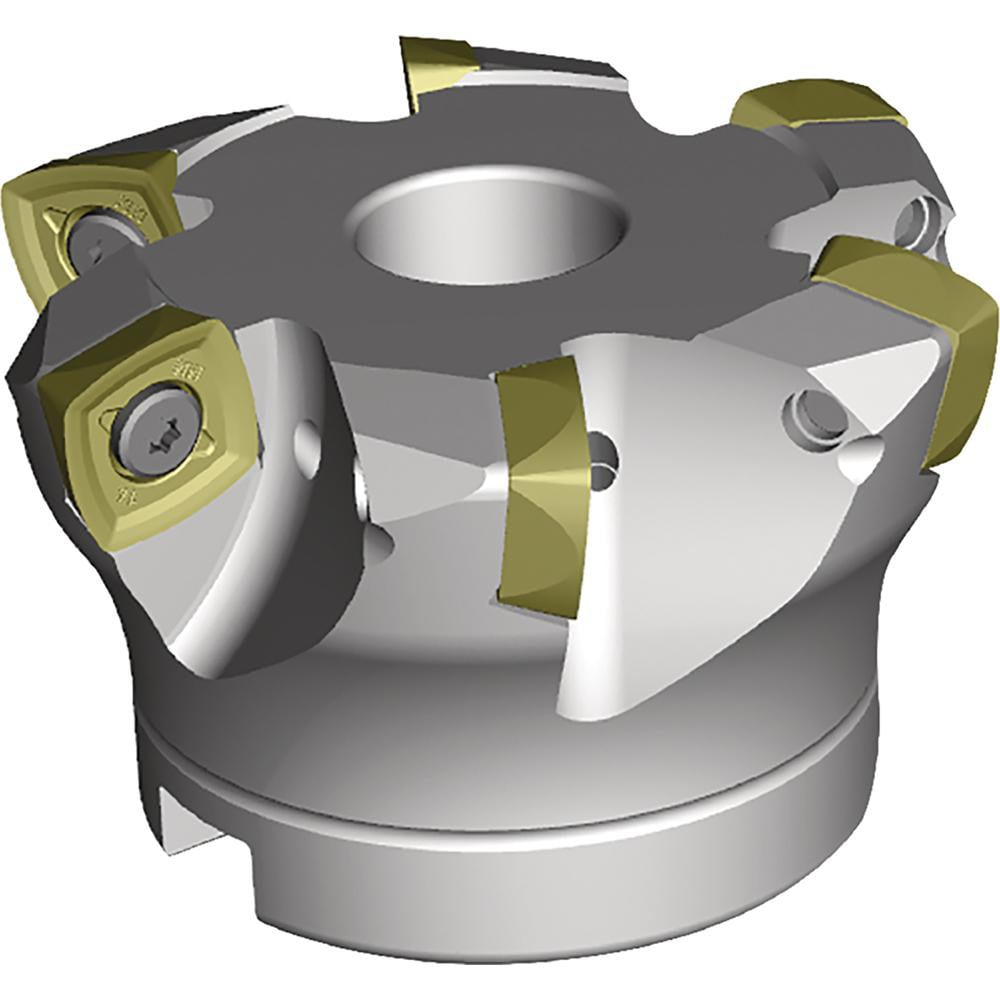

Brand: Widia / Part #: 6597777
Item #: 97198659
Brand: Widia
Model #: 6597777
Product Specifications
| Minimum Cutting Diameter (mm) | 40.20 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | XE..160516 |
| Maximum Ramping Angle | 0.86 degree |
| Cutter Style | VXF-16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | VXF-16 |
| Maximum Body Diameter (mm) | 27.00 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Maximum RPM | 21400 |
| Tool Application | Plunging; Ramping; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Titanium; Steel; Super-Alloy |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
