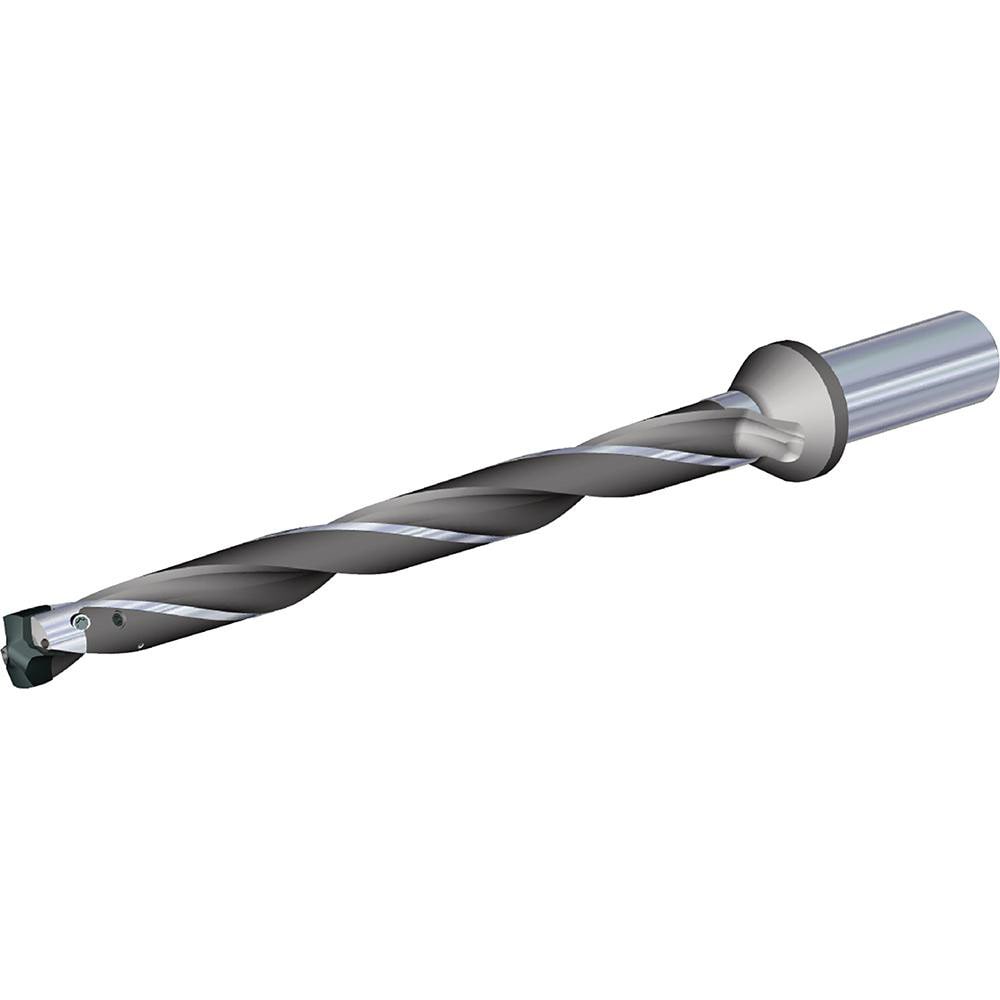

Brand: Widia / Part #: 6681011
Item #: 90220377
Brand: Widia
Model #: 6681011
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Diameter (Decimal Inch) | 1.1417 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 13.7008 |
| Shank Type | Cylindrical |
| Insert Style | TDMX |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | M |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Compatible Insert Size Code | M |
| Overall Length (Decimal Inch) | 17.9528 |
| Overall Length (Inch) | 17-61/64 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 13.7008 |
| Body Length (Decimal Inch) | 14.8504 |
| Shank Length (Decimal Inch) | 2.3622 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
