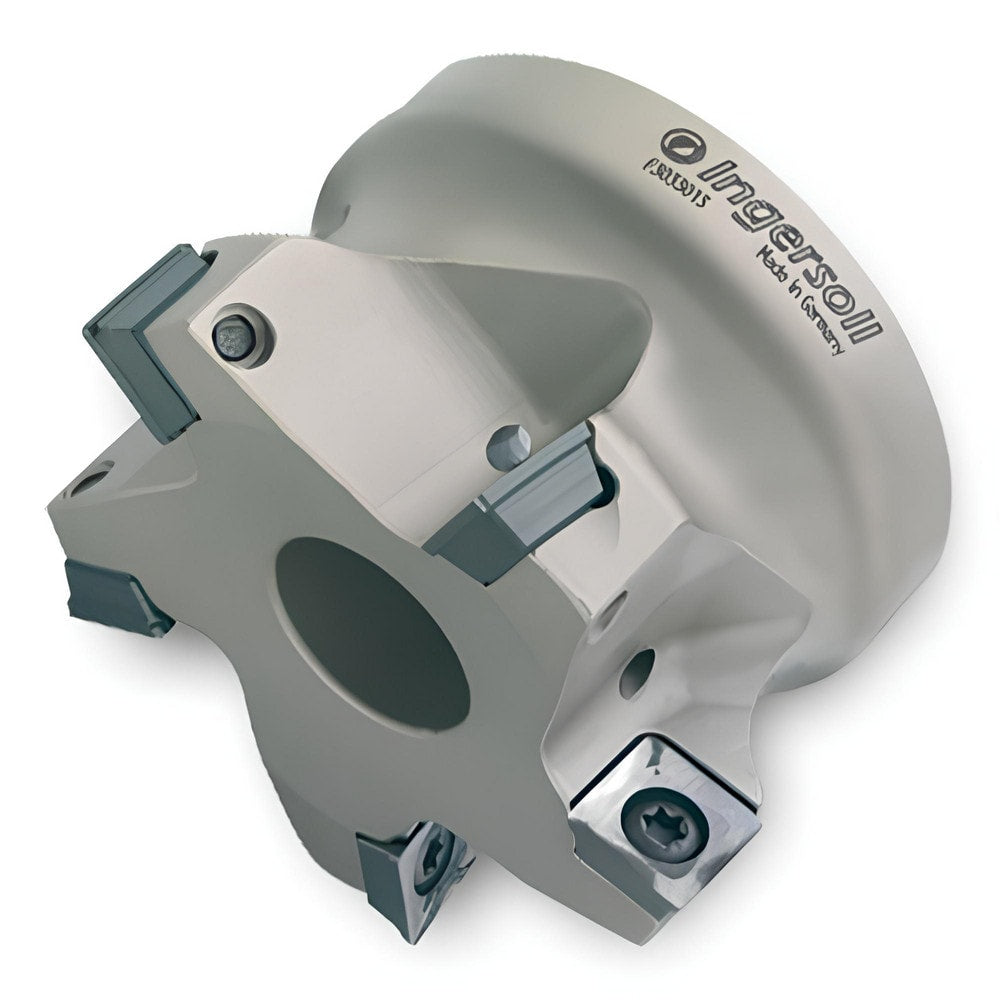

Brand: Ingersoll Cutting Tools / Part #: 3022721
Item #: 96437181
Brand: Ingersoll Cutting Tools
Model #: 3022721
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Minimum Cutting Diameter (mm) | 76.20 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4100 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 1105 |
| Maximum Ramping Angle | 0.5 |
| Cutter Style | 5H6G |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Positive |
| Series | 5H6G |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Inch) | 3/8 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Pitch Type | Close |
| Tool Application | Facing; Plunging; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.4100 |
| Complete Insert Compatibility | SHET1105? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 5H6G-30R01 |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 5 |
