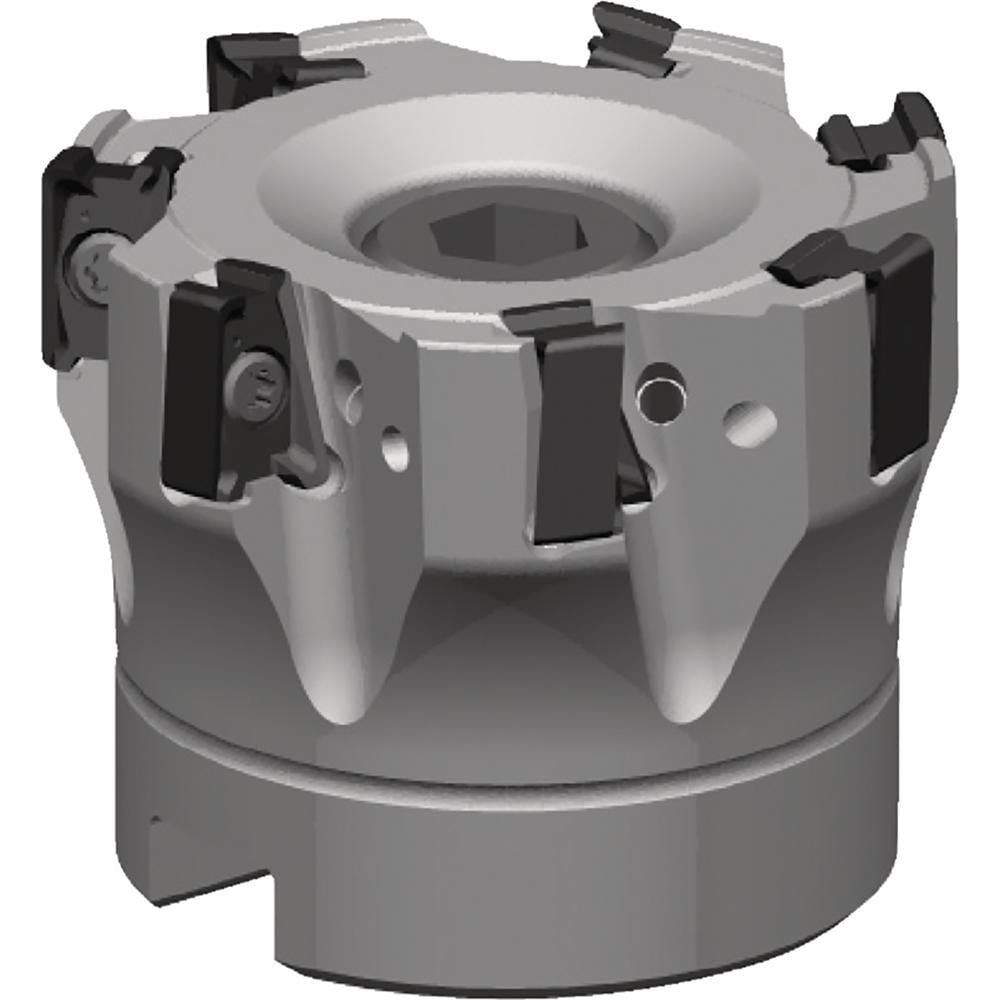

Brand: Widia / Part #: 6425490
Item #: 09787813
Brand: Widia
Model #: 6425490
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Compatible Insert Size Code | XNGU1004.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Rake Angle | -12.700 |
| Series | VSM490 |
| Maximum Body Diameter (mm) | 77.89 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (mm) | 50.000 |
| Maximum RPM | 17100.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM490D080Z08S254XN10JIS |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XNGU100408SRMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM490D080Z08S254XN10JIS |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
