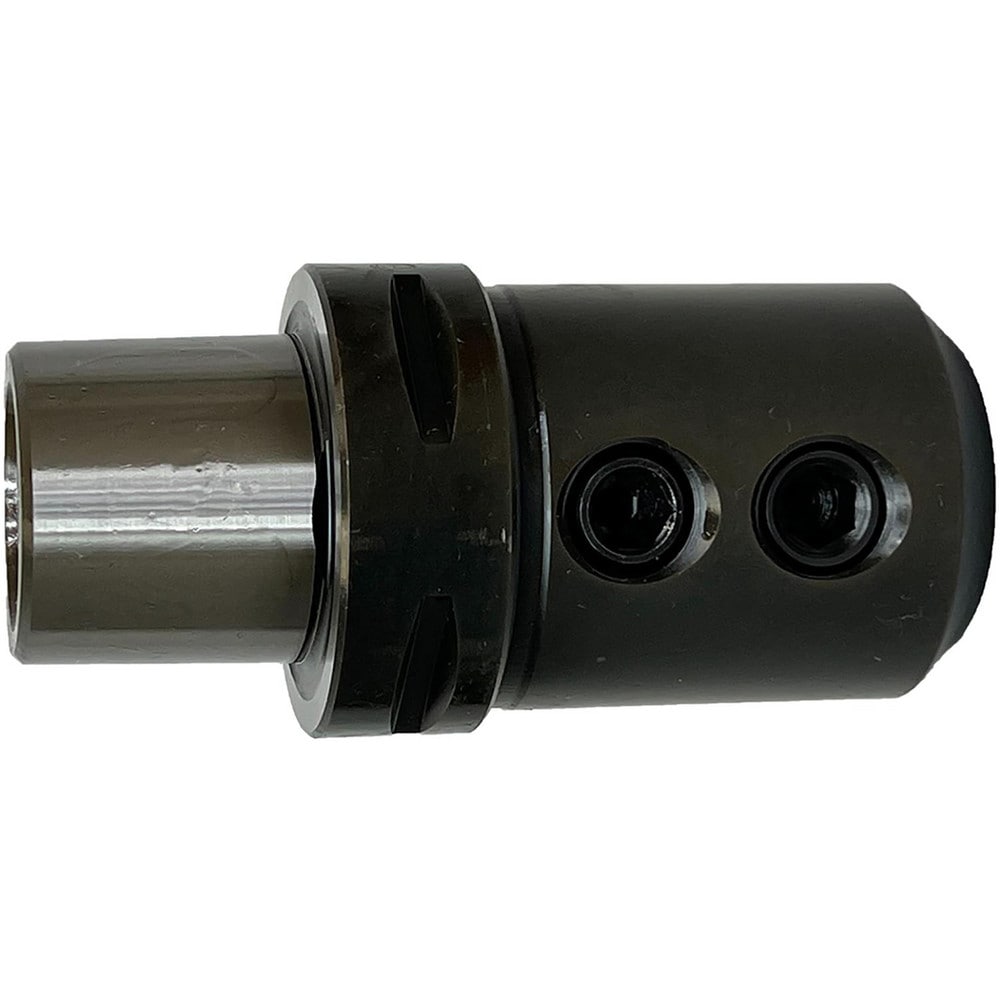

Brand: Bison / Part #: 7-145-800
Item #: 90886615
Brand: Bison
Model #: 7-145-800
Product Specifications
| Shank Type | Weldon Flat; Straight |
| Modular Connection Size | C8 |
| Overall Length (mm) | 162.3000 |
| Overall Length (Decimal Inch) | 6.3900 |
| Taper Size | C8 |
| Hole Diameter (Mm) ( - 0 Decimals) | 38.1000 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Hole Diameter (Inch) | 1-1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.5000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 63.50 |
| Projection (Decimal Inch) | 4.5000 |
| Projection (mm) | 114.300 |
| Through Coolant | Yes |
| Maximum RPM | 25000.000 |
| TIR (mm) | 0.0100 |
| TIR (Decimal Inch) | 0.000400 |
| Flange Diameter (mm) | 80.00 |
| Balanced To Rpm | 25000 |
