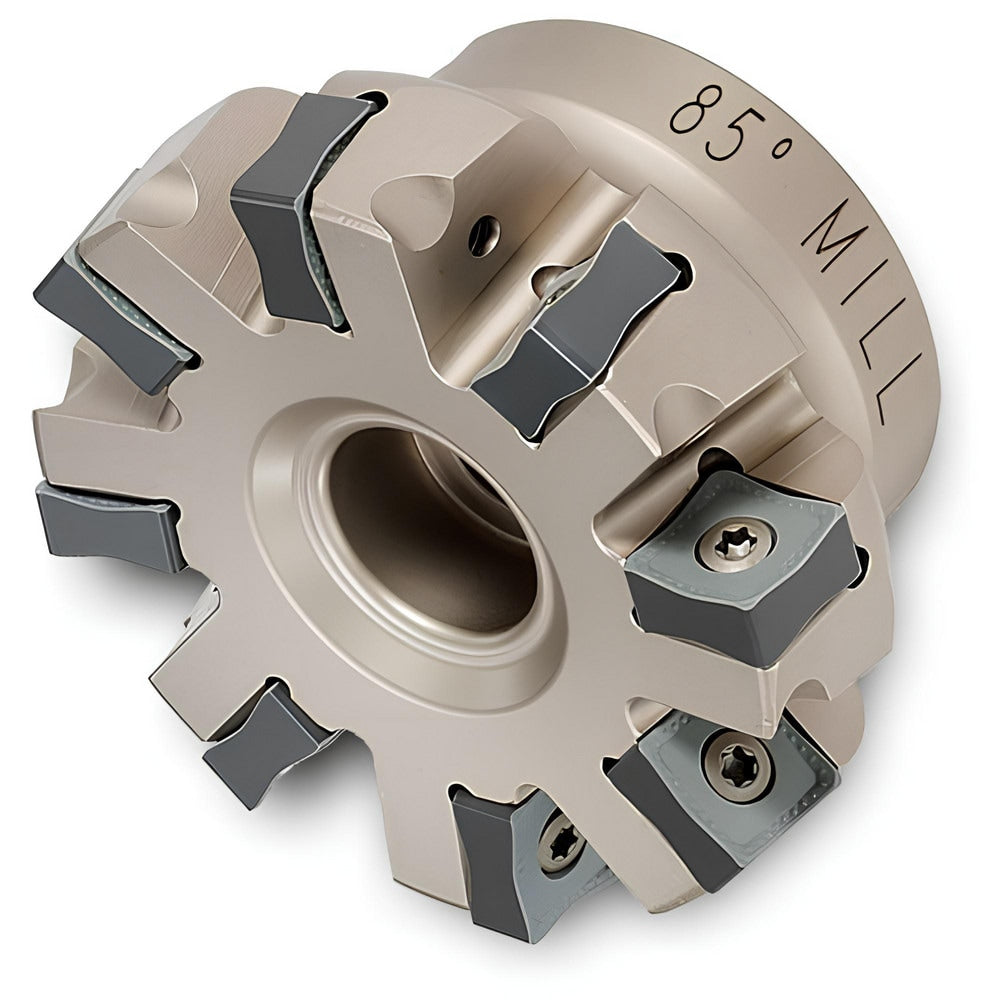

Brand: Ingersoll Cutting Tools / Part #: 2911807
Item #: 96710751
Brand: Ingersoll Cutting Tools
Model #: 2911807
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Inch) | 2-7/64 |
| Maximum Cutting Diameter (Decimal Inch) | 2.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 85.000 |
| Compatible Insert Size Code | 1306 |
| Cutter Style | DL6T |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | DL6T |
| Keyway Width (Decimal Inch) | 0.3120 |
| Keyway Width (Inch) | 5/16 |
| Overall Height (Mm - 5 Decimals) | 39.88000 |
| Overall Height (Decimal Inch) | 1.5700 |
| Pitch Type | Close |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNGU1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DL6T-20R01 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
