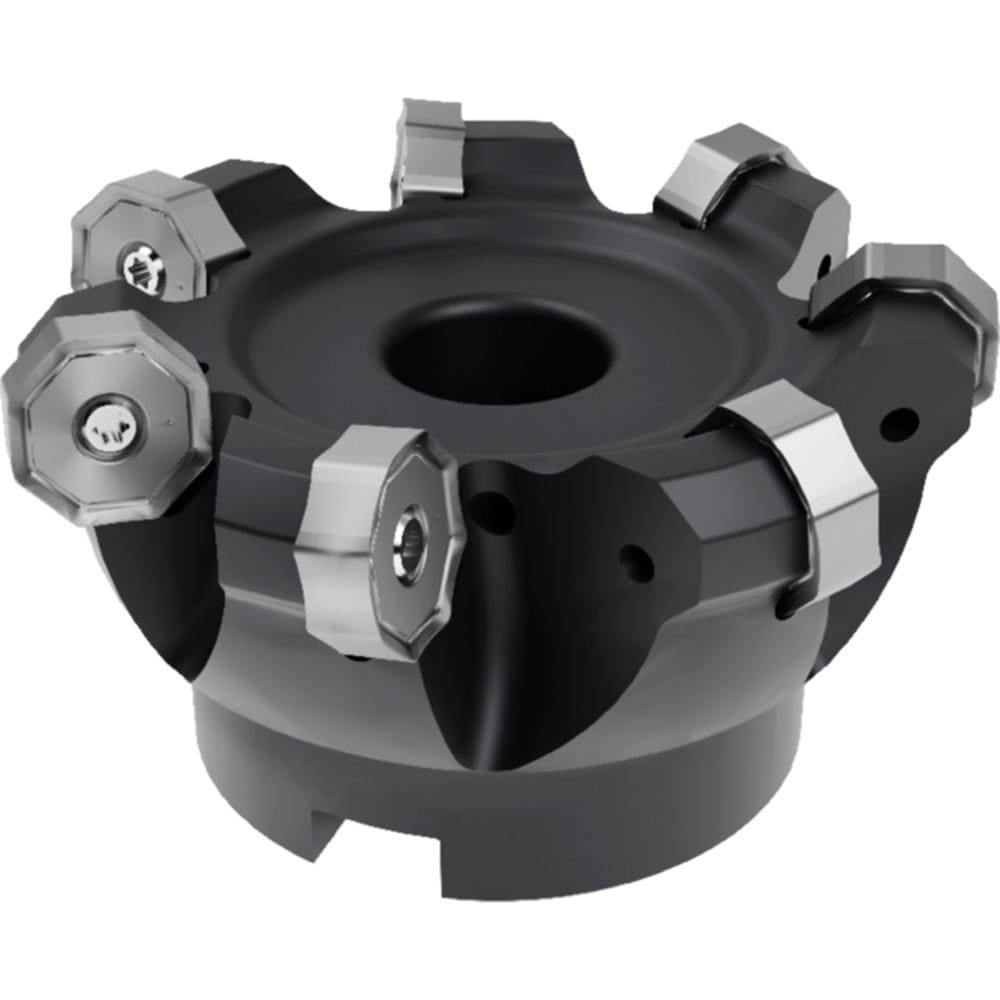

Brand: Widia / Part #: 3837978
Item #: 99560187
Brand: Widia
Model #: 3837978
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 135.73 |
| Maximum Depth of Cut (mm) | 3.70 |
| Arbor Hole Diameter (Decimal Inch) | 1.5753 |
| Lead Angle | 43.000 |
| Compatible Insert Size Code | 060512 |
| Cutter Style | M1600 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1600 |
| Hub Diameter (mm) | 89.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (Decimal Inch) | 5.1236 |
| Maximum Body Diameter (mm) | 130.14 |
| Maximum RPM | 6900.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | ONGX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1600D125Z11S40ON06 |
| Number Of Cutter Inserts | 11 |
| Coolant Through | Yes |
| Number Of Flutes | 11 |
