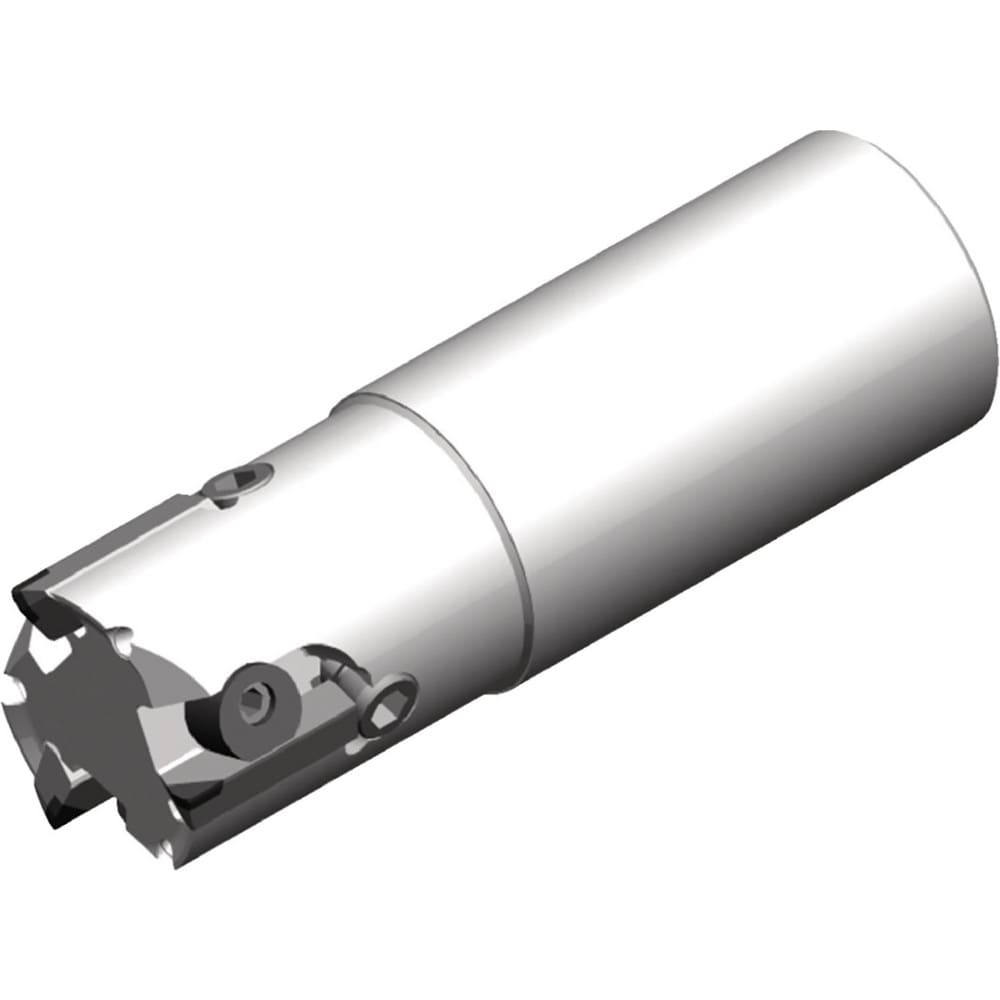

Brand: Widia / Part #: 5363252
Item #: 83171074
Brand: Widia
Model #: 5363252
Product Specifications
| Minimum Cutting Diameter (mm) | 17.24 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 6.35 |
| Toolholder Style | WSSEM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 0.78 |
| Compatible Insert Style | SDR; EDR |
| Compatible Insert Size Code | 1000 |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 100.0000 |
| Overall Length (Inch) | 100 |
| Overall Length (mm) | 100.00 |
| Series | WSSEM |
| Flute Type | Straight |
| Maximum RPM | 35800 |
| Head Length (mm) | 40.00 |
| Functional Length (mm) | 100.00 |
| Projection (mm) | 100.00 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
