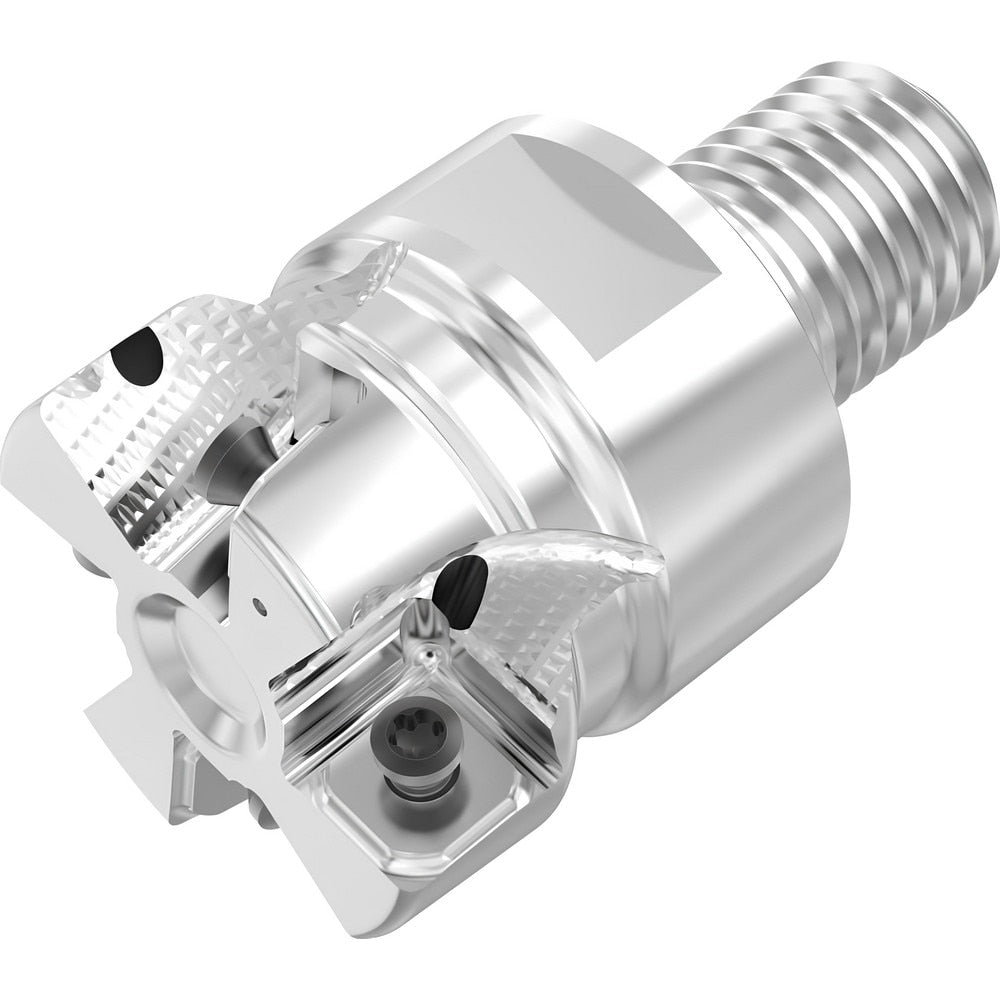

Brand: Seco / Part #: 10130009
Item #: 61223970
Brand: Seco
Model #: 10130009
Product Specifications
| Cutting Diameter (mm) | 40.00 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 41.40 |
| Lead Angle | 88 |
| Maximum Depth of Cut (mm) | 9.00 |
| Compatible Insert Size Code | 1204 |
| Shank Type | Modular Connection |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Style | SNMU |
| Insert Holding Method | Screw |
| Overall Length (mm) | 40.0000 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Series | R217.88 |
| Toolholder Style | R217.88 |
| Functional Length (mm) | 40.00 |
| Maximum Body Diameter (mm) | 37.00 |
| Maximum RPM | 12600.000 |
| Modular Connection Size | M20 |
| Tool Application | Facing |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Head Length (mm) | 40.00 |
| Number Of Flutes | 4 |
| End Mill Material | Steel |
| Coolant Through | Yes |
