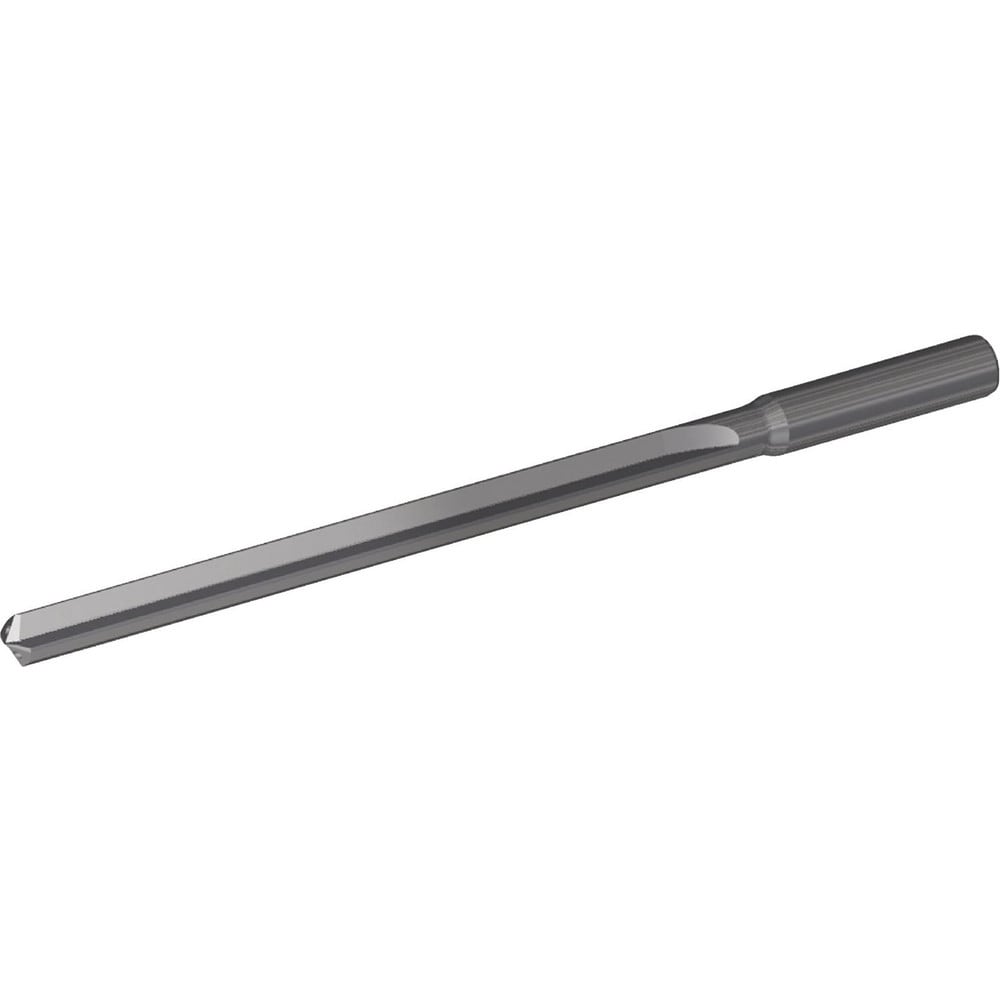

Brand: Widia / Part #: 4157622
Item #: 72385107
Brand: Widia
Model #: 4157622
Product Specifications
| Drill Bit Size (mm) | 14.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Straight |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 246.0000 |
| Flute Length (mm) | 199.00 |
| Series | TDG534 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 12 |
| Flute By Diameter Ratio | 12xD |
| Shank Diameter (mm) | 14.0000 |
| Maximum Drilling Depth (mm) | 168.00 |
| Shank Length (mm) | 45.000 |
| Number of Flats | 2 |
| Drill Point Length (mm) | 3.26 |
| Drill Bit Diameter Tolerance | 0.001000 to 0.019000 mm |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | WN10HD |
| Material Grade | WN10HD |
