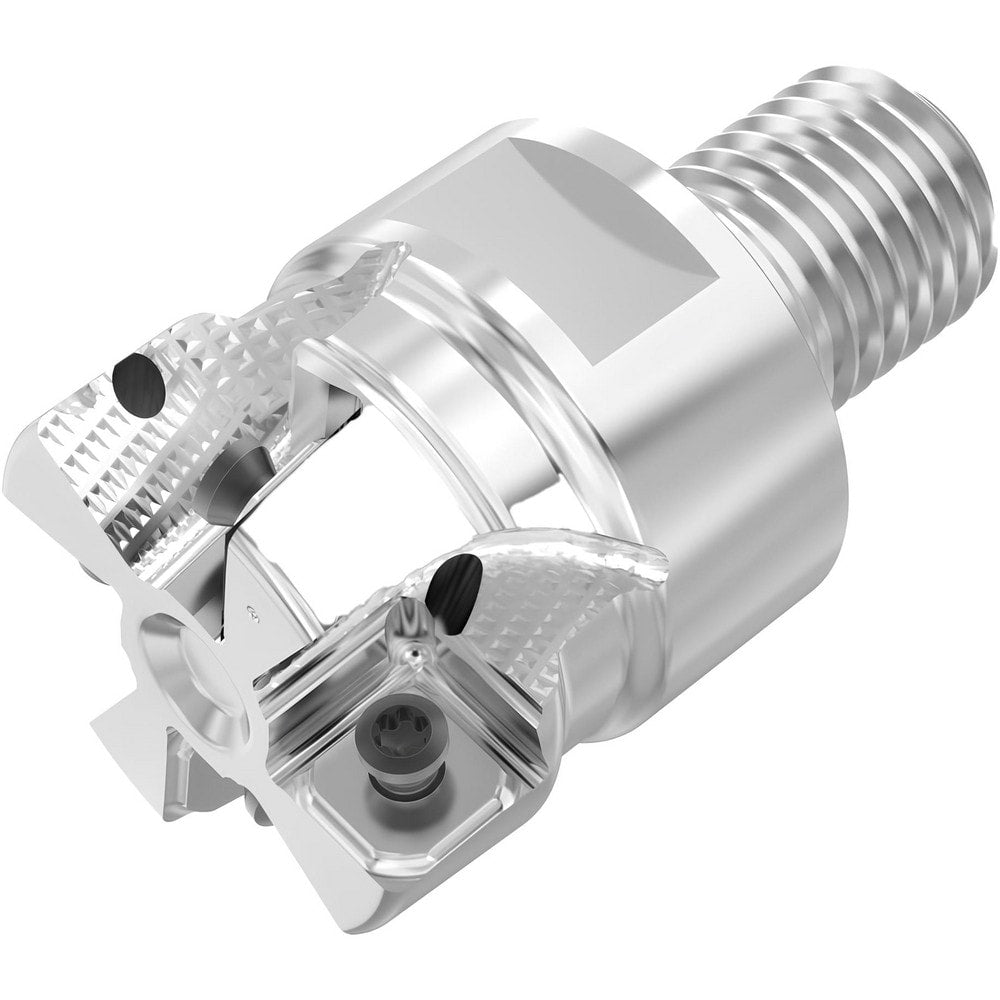

Brand: Seco / Part #: 10134800
Item #: 61223913
Brand: Seco
Model #: 10134800
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5630 |
| Lead Angle | 88 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Compatible Insert Size Code | 1204 |
| Shank Type | Modular Connection |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Style | SNMU |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 1.5750 |
| Overall Height (Decimal Inch) | 1.5750 |
| Series | R217.88 |
| Toolholder Style | R217.88 |
| Functional Length (Decimal Inch) | 1.5750 |
| Maximum Body Diameter (Decimal Inch) | 1.4570 |
| Maximum RPM | 12600.000 |
| Modular Connection Size | M20 |
| Tool Application | Facing |
| Tool Performance | High Performance |
| Primary Workpiece Material | Universal |
| Head Length (Decimal Inch) | 1.5750 |
| Number Of Flutes | 4 |
| End Mill Material | Steel |
| Coolant Through | Yes |
