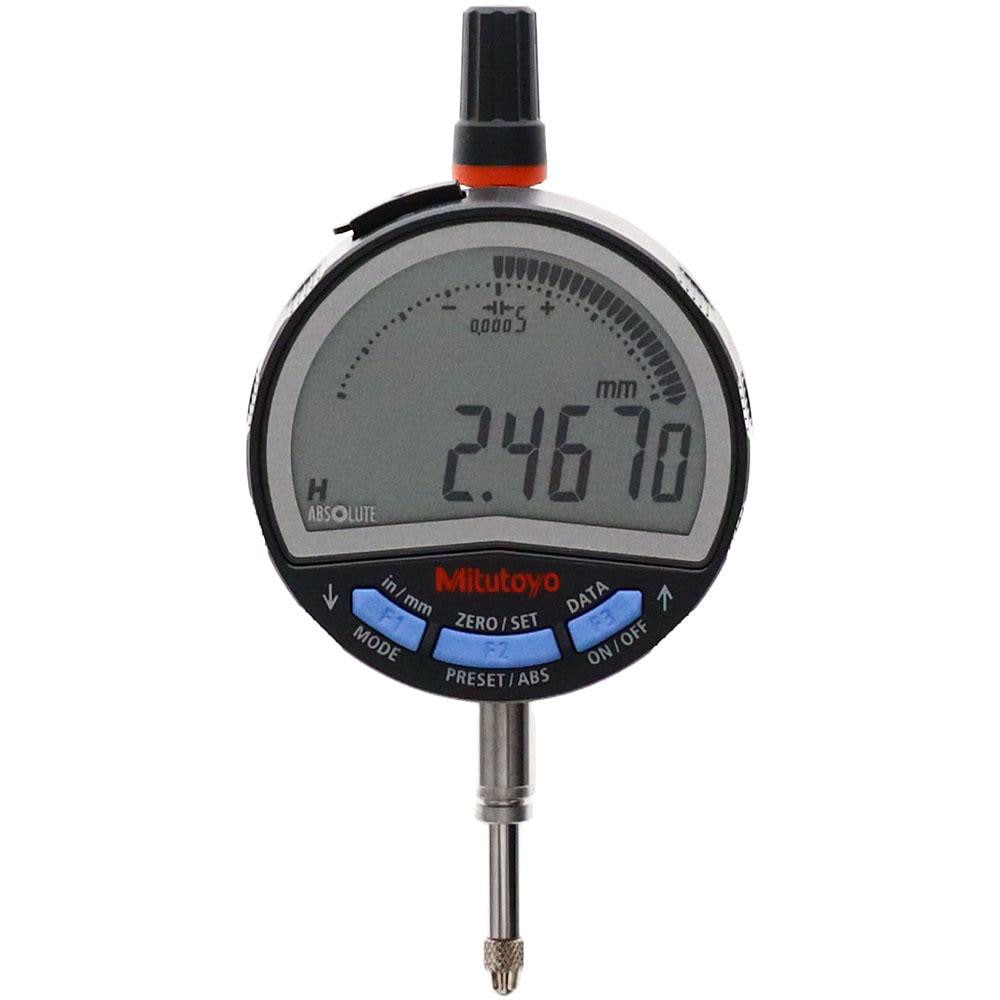

Brand: Mitutoyo / Part #: 543-701
Item #: 90977844
Brand: Mitutoyo
Model #: 543-701
Product Specifications
| Back Type | Flat |
| Connection Type | Straight |
| Display Type | LCD |
| Accuracy (Decimal Inch) | .0001" |
| Calibrated | No |
| Measuring Force (N) | 1.5 |
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 12.70 |
| Maximum Measurement (Decimal Inch) | 0.5000 |
| Contact Point Material | Carbide |
| Power Source | Battery |
| Batteries Included | Yes |
| Resolution (Decimal Inch) | 0.00002; 0.00005; 0.0001; 0.0005 |
| Features | Tolerance judgement can be performed by setting upper and lower tolerance limits.; Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.; An analog bar has been integrated to make upper/lower limit and turnover point reading more comfortable |
| Includes | CR2032 Battery |
