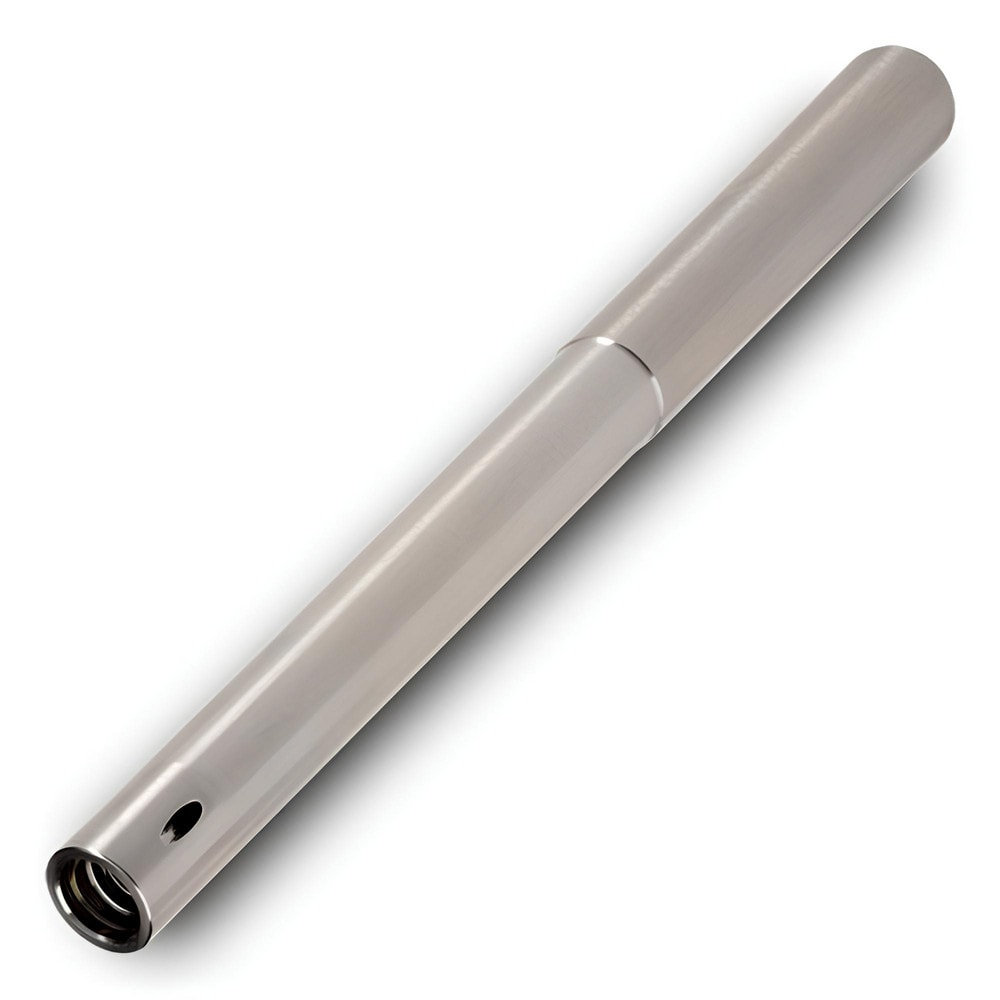

Brand: Ingersoll Cutting Tools / Part #: 4543013
Item #: 80875644
Brand: Ingersoll Cutting Tools
Model #: 4543013
Product Specifications
| Projection (mm) | 40.000 |
| Overall Length (mm) | 90.0000 |
| Neck Diameter (mm) | 15.200 |
| Neck Thread Size | T10 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 15.20 |
| Toolholder Style | S*T*HA |
| Tool Material | Heavy Metal |
| Series | S*T*HA |
| Tip Connection Size | T10 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 38.00 |
| Extension Length (mm) | 40.00 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T10 |
| Manufacturers Catalog Number | S016T10HA040 |
| Type | "T" Style Thread Connection |
| Coolant Through | Yes |
