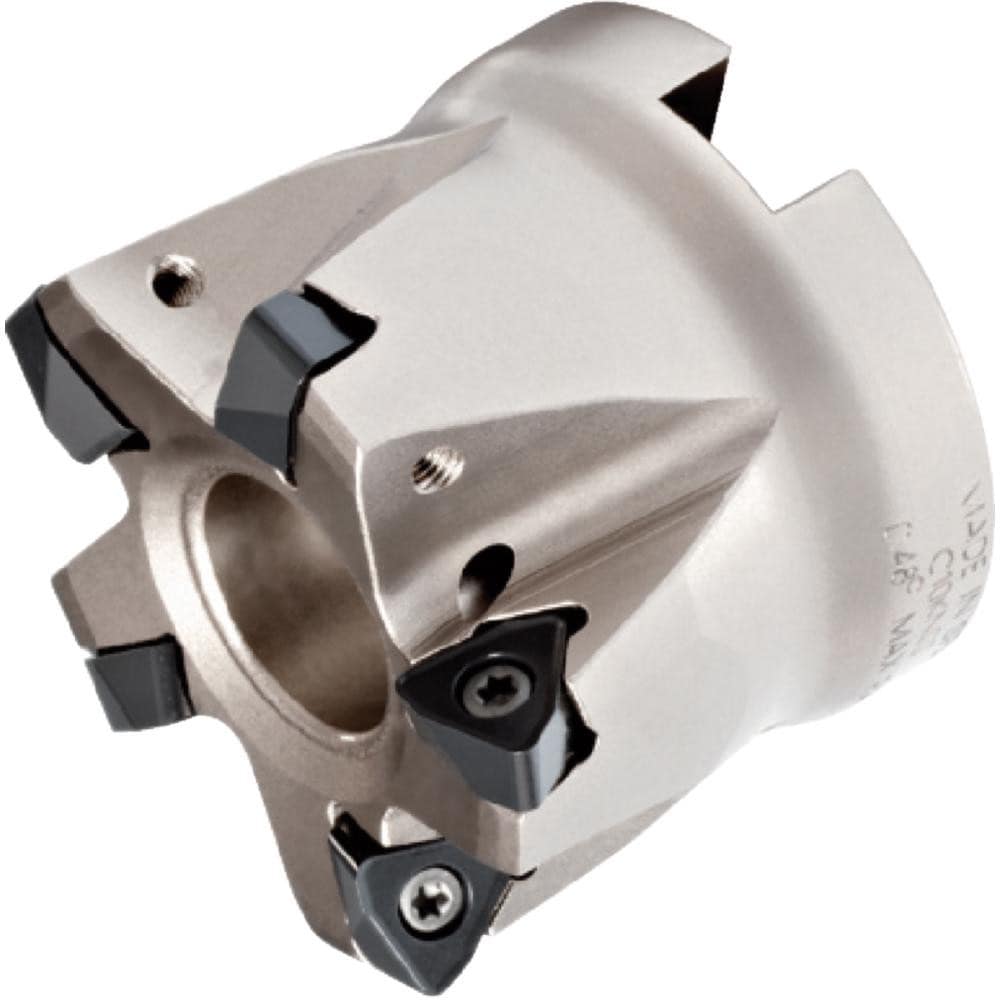

Brand: Widia / Part #: 4170922
Item #: 83126086
Brand: Widia
Model #: 4170922
Product Specifications
| Minimum Cutting Diameter (mm) | 26.10 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 1.25 |
| Toolholder Style | M370 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Shank Diameter (mm) | 0.63 |
| Maximum Ramping Angle | 1.09 |
| Compatible Insert Style | WOEJ |
| Compatible Insert Size Code | 080412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 40.0000 |
| Overall Length (Inch) | 40 |
| Overall Length (mm) | 40.00 |
| Series | M370 |
| Flute Type | Straight |
| Maximum RPM | 33500 |
| Functional Length (mm) | 40.00 |
| Projection (mm) | 40.00 |
| Tool Application | Milling; Ramping; Slotting |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
