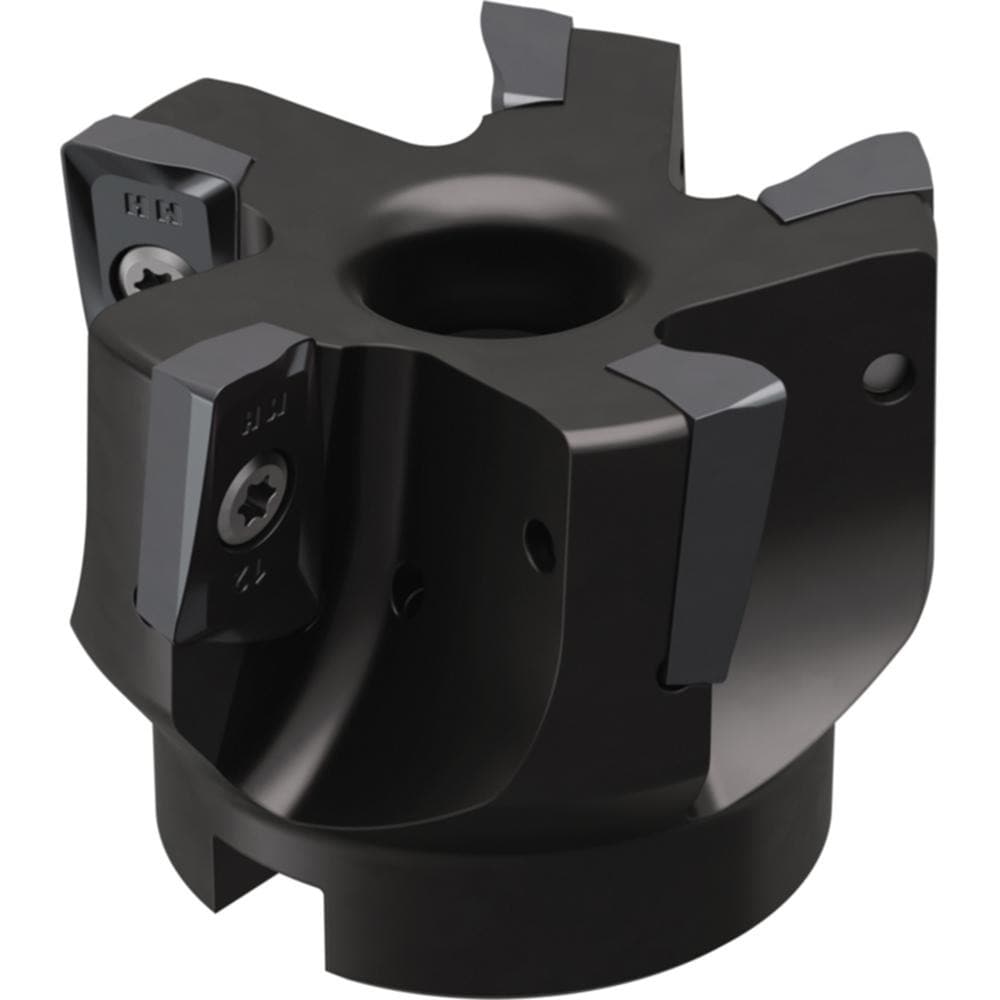

Brand: Widia / Part #: 5988133
Item #: 09861758
Brand: Widia
Model #: 5988133
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Compatible Insert Size Code | XPHT2206.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -6.000 |
| Series | VSM22 |
| Maximum Body Diameter (Decimal Inch) | 5.9327 |
| Overall Height (Decimal Inch) | 2.3800 |
| Keyway Width (mm) | 19.30 |
| Hub Diameter (Decimal Inch) | 4.8750 |
| Maximum RPM | 6800.000 |
| Tool Application | Plunging; Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM22U600Z10S200XP22 |
| Coolant Hole Diameter (Decimal Inch) | 0.1181 |
| Complete Insert Compatibility | XPHT220612PDSRMH |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM22U600Z10S200XP22 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
