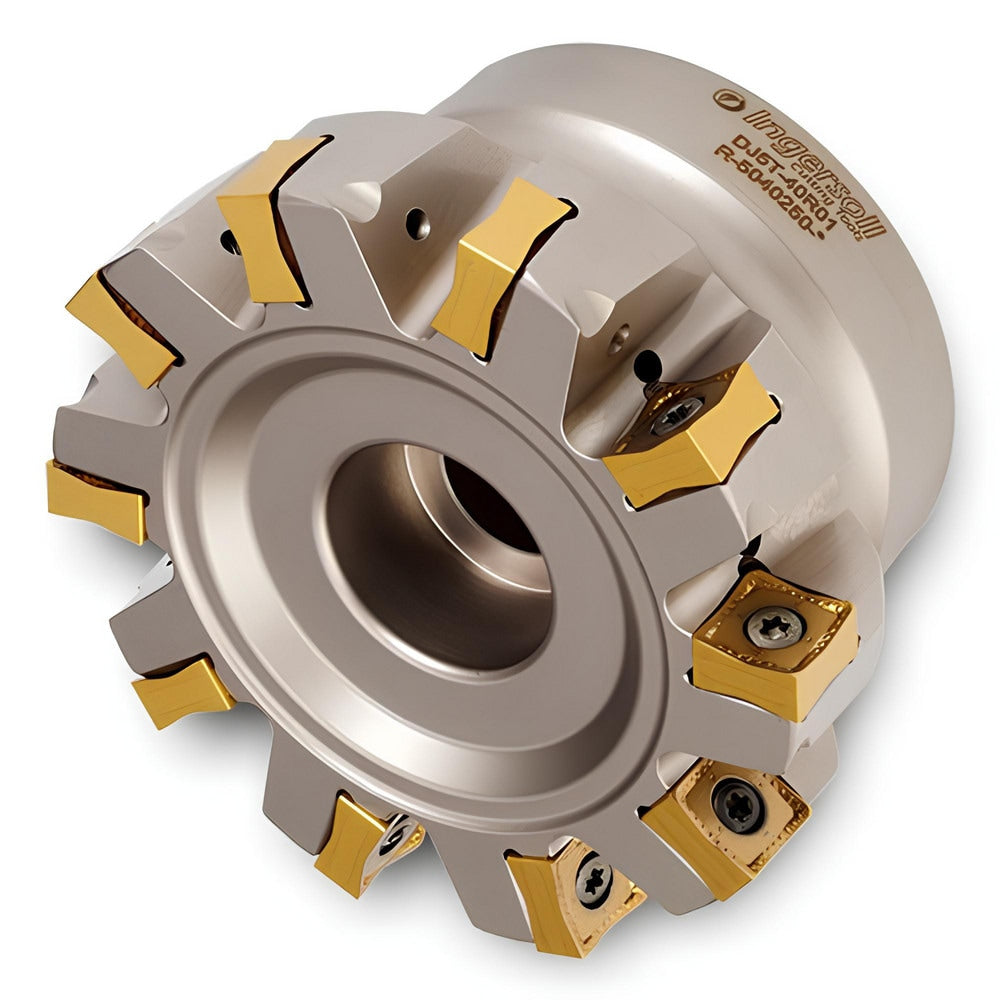

Brand: Ingersoll Cutting Tools / Part #: 3077804
Item #: 96715933
Brand: Ingersoll Cutting Tools
Model #: 3077804
Product Specifications
| Minimum Cutting Diameter (mm) | 160.00 |
| Minimum Cutting Diameter (Decimal Inch) | 6.2992 |
| Maximum Cutting Diameter (mm) | 161.10 |
| Maximum Cutting Diameter (Decimal Inch) | 6.3425 |
| Maximum Depth of Cut (Decimal Inch) | 0.4488 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 88.000 |
| Compatible Insert Size Code | 1306 |
| Cutter Style | DQ6T |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | DQ6T |
| Keyway Width (Decimal Inch) | 0.6457 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Overall Height (Decimal Inch) | 2.4803 |
| Pitch Type | Normal |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNGU1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DQ6T160R00 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | No |
| Number Of Flutes | 12 |
