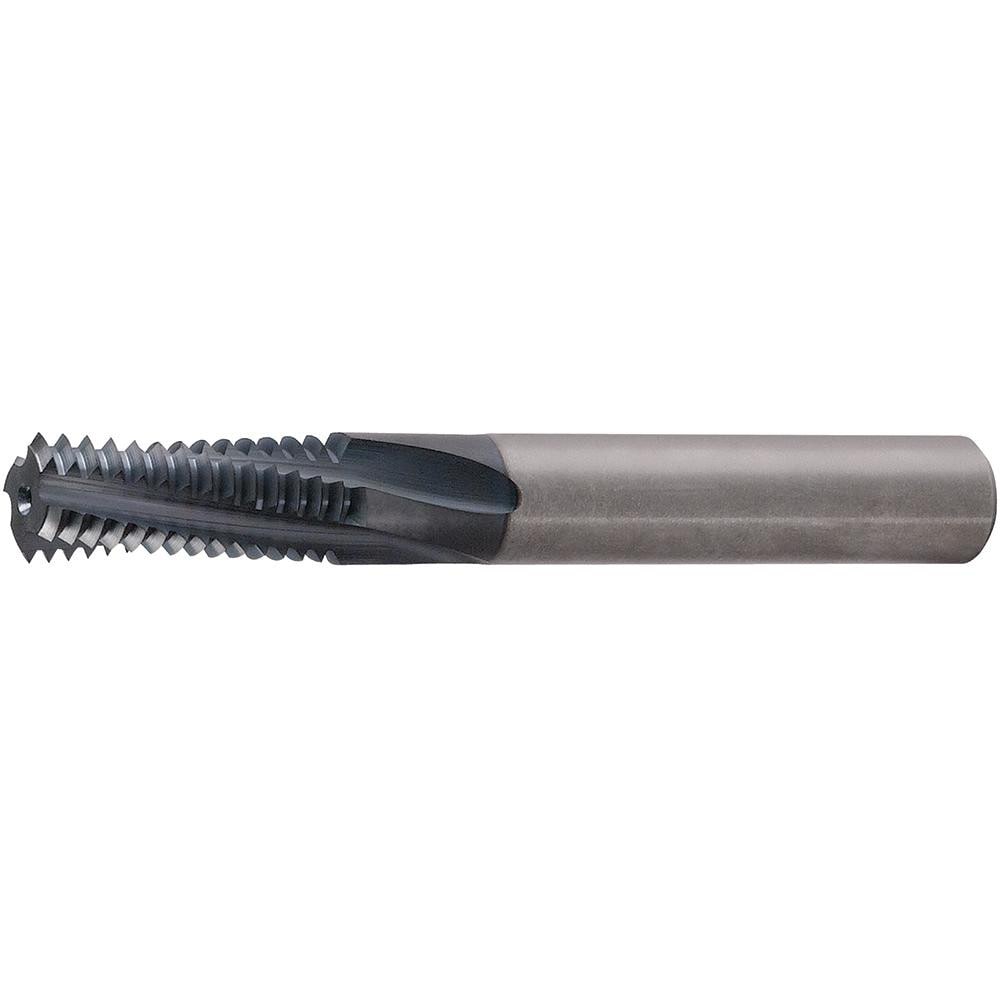

Brand: Widia / Part #: 4138508
Item #: 00185223
Brand: Widia
Model #: 4138508
Product Specifications
| Material | Solid Carbide |
| Thread Depth (mm) | 24.47 |
| Thread Depth | 24.4700 |
| Thread Type | Metric Fine; Metric |
| Shank Diameter (mm) | 10.0000 |
| Cutting Diameter (mm) | 9.90 |
| Shank Type | Cylindrical |
| Length of Cut (mm) | 24.4700 |
| Minimum Nominal Diameter (Decimal Inch) | 0.4012 |
| Shank Length (mm) | 40.000 |
| Overall Length (mm) | 40.0000 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Material Grade | WU13PV |
| Series | GTM11 |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Teeth Per Inch | 25.4 |
