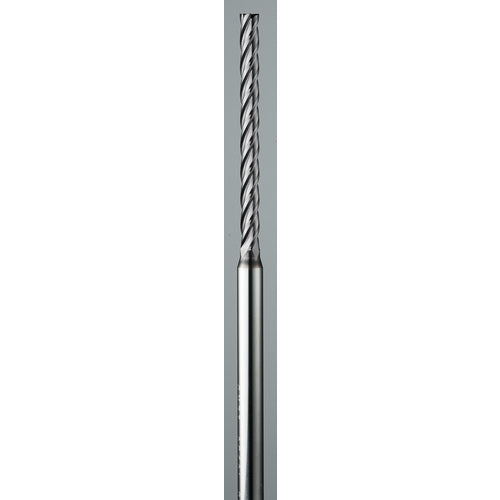

.051 End Mill 4FL SQ TA - SER M4S .051x1/8x.153x1-1/2
Item #: DD9002480
Brand: KYOCERA SGS Precision Tools
Model #: 02480
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.051″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.153″ |
| Usable Length (LU) | 1.347″ |
| Overall Length (OAL) | 1-1/2″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.051″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
