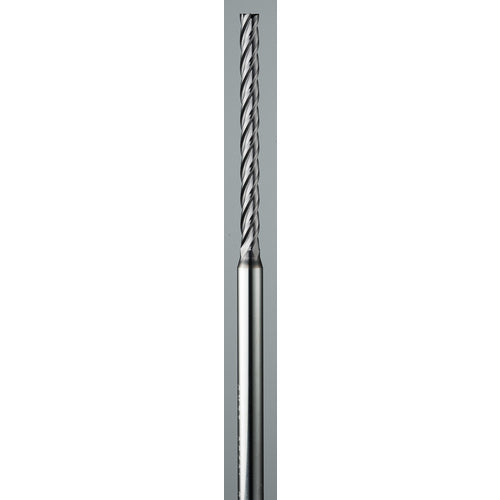

1.30 End Mill 2FL SQ TA - SER M2SM 1.3x4x3.9x50
Item #: DD9002906
Brand: KYOCERA SGS Precision Tools
Model #: 02906
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.3 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Usable Length (LU) | 46 mm |
| Depth of Cut Maximum (APMX) | 3.9 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 50 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TA |
| Decimal Equivalent | 0.0512″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | M2SM |
| Shank Type | Round |
