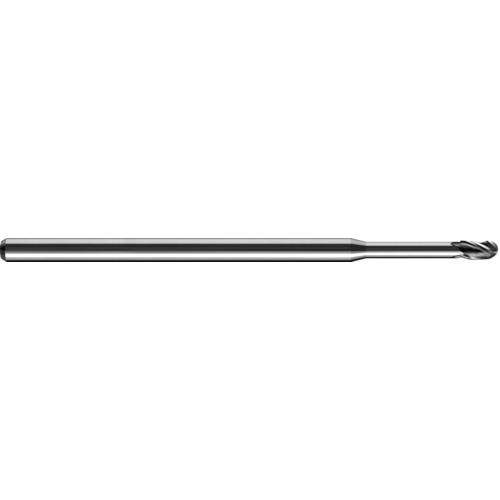

0.025″ Dia. × 1/8″ Shank × 1/8″ DOC × 2-1/2″ OAL, Carbide Uncoated, 3 Flute, 30° Helix, Straight | Cylindrical, Ballnose End Mill
Item #: DD9003835
Brand: KYOCERA SGS Precision Tools
Model #: 03835
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.025″ |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Application | Roughing | Finishing |
| Depth of Cut Maximum (APMX) | 1/8″ |
| Neck Diameter (DN) | 0.0759″ |
| Overall Length (OAL) | 2-1/2″ |
| Neck Length (LN) | 1/2″ |
| Cutting Edge Material | Carbide |
| Tool Type | Micro with Neck Relief | Center Cutting |
| Coating | TA |
| Length Group | Extended Reach | Stub |
| Flute Count (NOF) | 3 |
| Style | Right Hand Spiral | Medium Helix |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.025″ |
| Shank Type | Straight | Cylindrical |
| Measurement Type | Inch |
| Usable Length (LU) | 0.037″ |
| Series/List # | 1755 |
