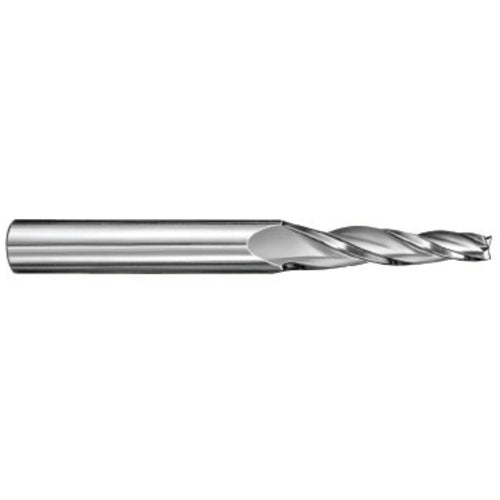

3/8 End Mill 3FL SQ TC - SER 23S 1/8x3/8x3-1/2 10.0DEG
Item #: DD9032328
Brand: KYOCERA SGS Precision Tools
Model #: 32328
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Body Half Taper Angle (BHTA) | 10 Degrees |
| Flute Count (NOF) | 3 |
| Coating | TiCN |
| Overall Length (OAL) | 3-1/2″ |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 28 Degrees |
| Style | Square End |
