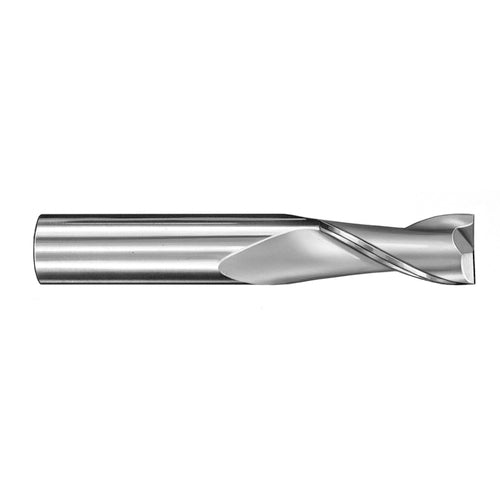

1/64 End Mill 2FL SQ TN - SER 03S 1/64x1/8x1/32x1-1/2
Item #: DD9039301
Brand: KYOCERA SGS Precision Tools
Model #: 39301
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/64″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 1.469″ |
| Depth of Cut Maximum (APMX) | 1/32″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TN |
| Decimal Equivalent | 0.015625″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 03S |
| Shank Type | Round |
