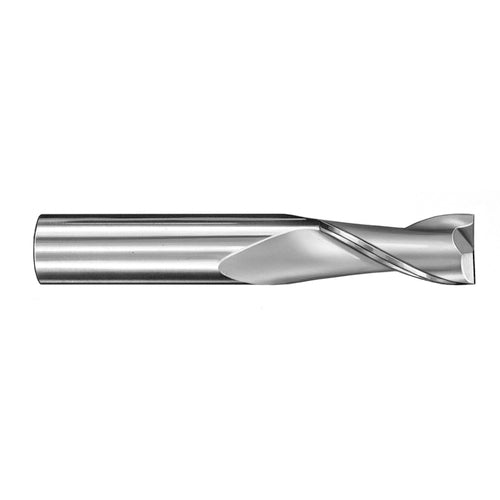

1/4 End Mill 2FL SQ TC - SER 03S 1/4x1/4x3/4x2-1/2
Item #: DD9039531
Brand: KYOCERA SGS Precision Tools
Model #: 39531
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 1-3/4″ |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | TC |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 03S |
| Shank Type | Round |
