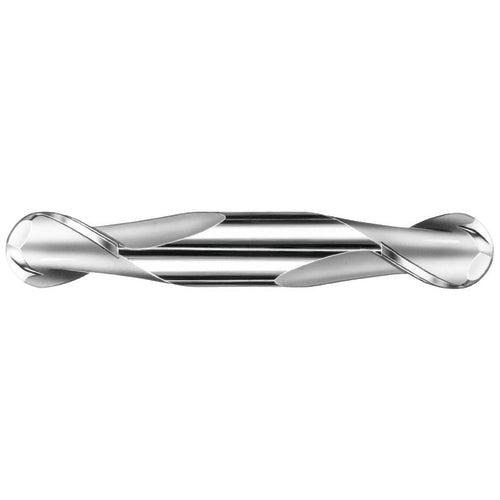

7/64″ Dia. × 1/8″ Shank × 3/16″ DOC × 1-1/2″ OAL, Carbide TiCN, Spiral , 2 Flute, 30° Helix, Ballnose End Mill
Item #: DD9039662
Brand: KYOCERA SGS Precision Tools
Model #: 39662
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/64″ |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 3/16″ |
| Usable Length (LU) | 1.313″ |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | TiCN |
| Decimal Equivalent | 0.109375″ |
