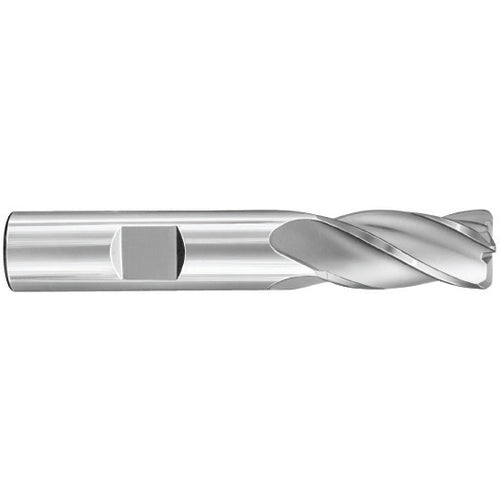

4.0 End Mill 4FL 0.50R TA - SER 01C 4x4x14x50
Item #: DD9040001
Brand: KYOCERA SGS Precision Tools
Model #: 40001
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 14 mm |
| Usable Length (LU) | 36 mm |
| Overall Length (OAL) | 50 mm |
| Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.1575″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 01C |
