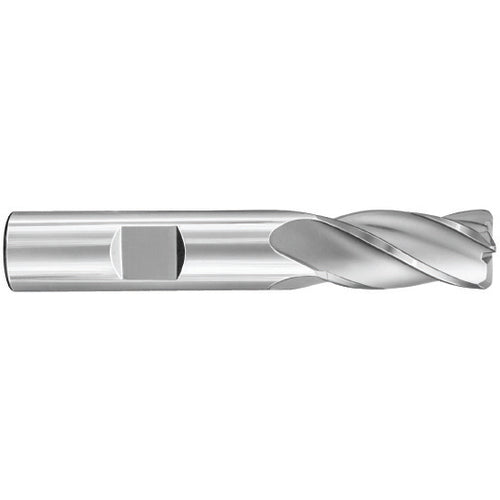

8.0 End Mill 4FL 2.00R TA - SER 01C 8x8x20x63
Item #: DD9040020
Brand: KYOCERA SGS Precision Tools
Model #: 40020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm |
| Usable Length (LU) | 43 mm |
| Overall Length (OAL) | 63 mm |
| Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TA |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | 01C |
