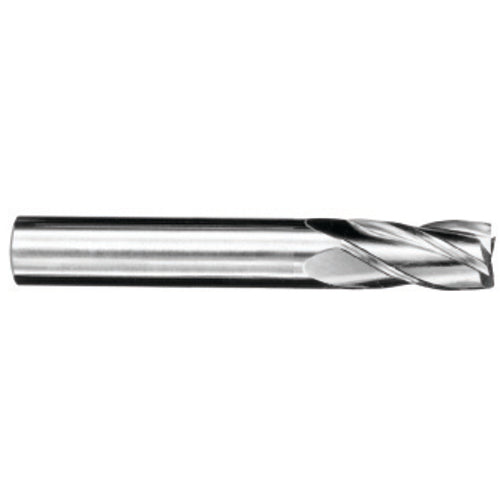

3.5 End Mill 4FL SQ - SER 01S 3.5x4x12x50
Item #: DD9040125
Brand: KYOCERA SGS Precision Tools
Model #: 40125
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3-1/2 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 12 mm |
| Usable Length (LU) | 38 mm |
| Overall Length (OAL) | 50 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
