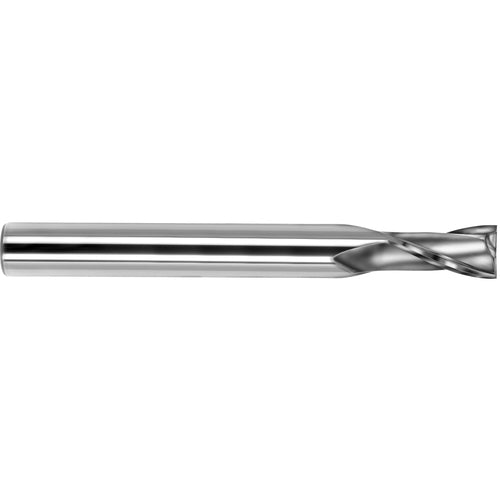

3.0 End Mill 2FL SQ - SER 59S 3x6x9x60
Item #: DD9043910
Brand: KYOCERA SGS Precision Tools
Model #: 43910
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 51 mm |
| Depth of Cut Maximum (APMX) | 9 mm |
| Corner Radius (RE) | None |
| Overall Length (OAL) | 60 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | Uncoated |
| Decimal Equivalent | 0.1181″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 25 Degrees |
| Series/List # | 59S |
| Shank Type | Round |
