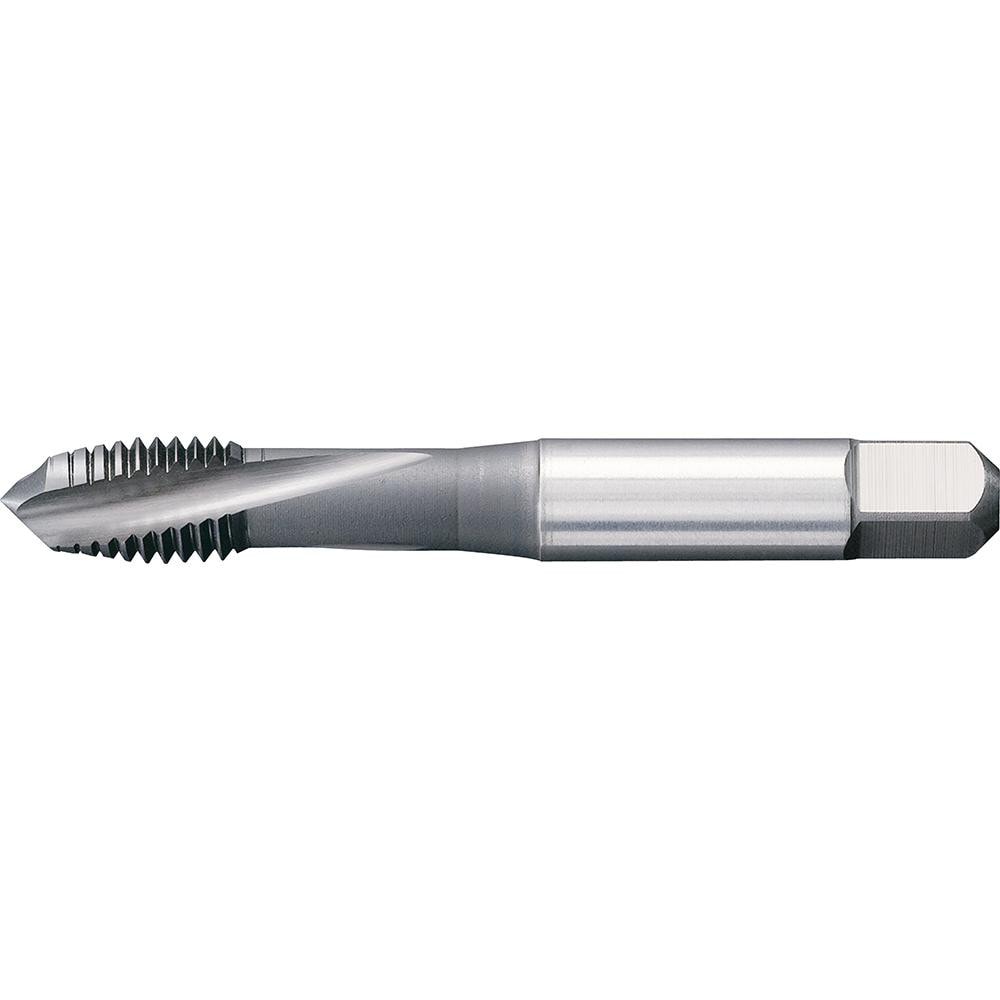

Brand: Widia / Part #: 3954985
Item #: 13053897
Brand: Widia
Model #: 3954985
Product Specifications
| Thread Size (Inch) | #8-32 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | 3BX |
| Number Of Flutes | 2 |
| Material | Powdered Metal |
| Threads per Inch | 32 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 2.1300 |
| Thread Depth (Decimal Inch) | 0.7600 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Material Grade | WU32MG |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Square Size (Decimal Inch) | 0.1290 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT20 |
