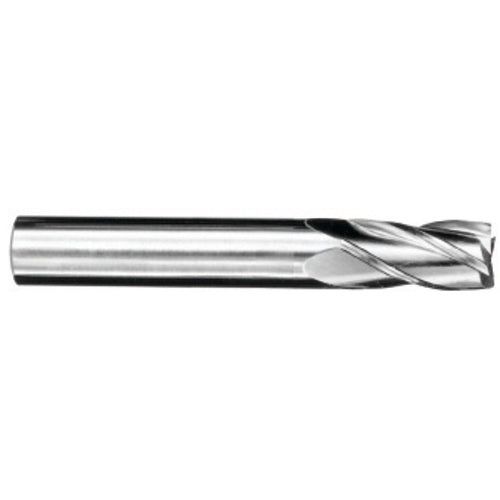

16.0 End Mill 4FL SQ TC - SER 01S 16x16x32x89
Item #: DD9048539
Brand: KYOCERA SGS Precision Tools
Model #: 48539
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 32 mm |
| Usable Length (LU) | 57 mm |
| Overall Length (OAL) | 89 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TC |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
