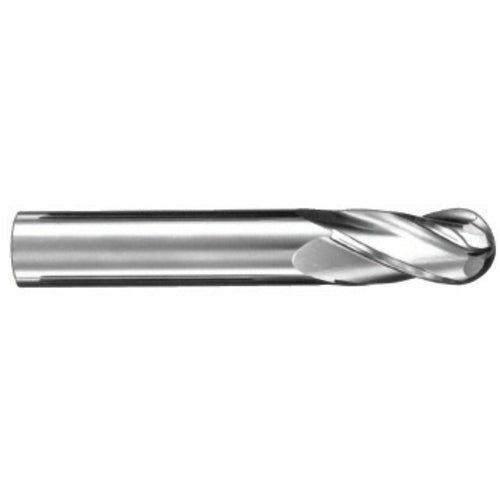

9 mm Dia. × 10 mm Shank × 22 mm DOC × 75 mm OAL, Carbide TiCN, Spiral , 4 Flute, 30° Helix, Ballnose End Mill
Item #: DD9048598
Brand: KYOCERA SGS Precision Tools
Model #: 48598
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9 mm |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm |
| Usable Length (LU) | 53 mm |
| Overall Length (OAL) | 75 mm |
| Flute Type | Spiral |
| Cutting Edge Material | Carbide |
| Style | Ball Nose |
| Coating | TiCN |
| Decimal Equivalent | 0.3543″ |
